Bolt Connected Round Cartridge Type Fuse Links

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: TypesRated voltage(V)Rate current(A)Weight(g)355Dimension(mm)ABCΦDEFΦdRS94A50040-20098705232282258.2*12RS94C50040-200106806242282258.2*12RS94D25030-200120805726292258.2*12RS94E50030-200142806042312458.2*12RS94F50040-200135805838332558.2*12RS94G50040-400202.58862423626510.2*15RS94H25030-15082705327 …

Detail

Messages

Product Detail:

Types	Rated voltage(V)	Rate current(A)	Weight(g)	355Dimension(mm)

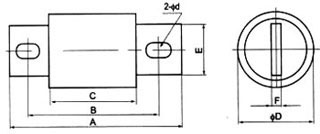

Types	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	ΦD	E	F	Φd
RS94A	500	40-200	98	70	52	32	28	22	5	8.2*12
RS94C	500	40-200	106	80	62	42	28	22	5	8.2*12
RS94D	250	30-200	120	80	57	26	29	22	5	8.2*12
RS94E	500	30-200	142	80	60	42	31	24	5	8.2*12
RS94F	500	40-200	135	80	58	38	33	25	5	8.2*12
RS94G	500	40-400	202.5	88	62	42	36	26	5	10.2*15
RS94H	250	30-150	82	70	53	27	22	16	5	8.2*12
RS94J	250	40-250	102	67	51	26	26	19	3.5	8.2*12
RS95A	500/660	50-250	112.5	91	72	54	28	22	5	8.2*12
RS95B	500/660	50-300	150	92	73	54	31	25	5	8.2*12
RS95C	500/660	50-200	114	92	73	54	26	19	5	8.2*12
RS95D	500/660	100-200	149	92	72	45	30	25	5	8.2*12
RS95E	500/660	40-350	155	92	72	54	31	25	6	8.2*12
RS95F	500/660	50-250	145	93	75	54	26	19	5	8.2*12
RS95FS	500	100	124	100	82	48	26	19	3	8.2*12
RS95G	500/660	50-300	128	93	75	53	31	25	5	8.2*12
RS95H	500	200-400	193	96	70	42	36	26	5	10.2*15
RS95K	500	250-400	320	98	70	38	47	32	5	10.2*15
RS95L	700	100-300	195	127	108	89	31	25	5	8.2*12
RS95M	500	50-200	165	110	81	50	31	25	5	8.2*10
RS95N	700	50-200	172	128	101	75	25	20	6	10.5*15
RS95P	250	250-400	218	98	68	41	38	25	6	10.5*18
RS95Q	500	50-200	148	110	95	75	25	18	5	6.2*10
RS95R	700	35-100	160	110	84	50	31	25	6	8.2*18
RS95S	250	160-300	188	100	65	30	36	30	6	10.5*15
RS95T	500/660	100-250	210	112	87	52	27	21	5	10*18
RS95U	500	100	148	100	82	48	26	19	5	8.2*12
RS95V	600	100-200	262	128	98	60	25	19	3	10.2*15
RS95W	500	40-200	183	129	96	53	34	24	6	12*20
RS96A	500	200-300	230	100	70	40	40	26	6	10.5*18
RS96B	500/660	200-400	240.5	110	83	53	38	26	6	8.2*12
RS96C	500/660	100-200	125	112	90	70	25	20	6	10.5*15
RS96D	500/660	75-200	241	112	90	60	36	26	5	10.5*15
RS96E	500/660	200-300	166	112	93	73	31	25	5	7*9.5
RS96F	500/660	200-400	255	113	87	70	40	26	6	10.5*15
RS96G	500/660	400-500	437	114	87	56	51	38	6	10.5*15
RS96GK	500	400-500	198	97	67	38	51	36	8	11*17
RS96H	500/660	300	132	117	92	67	28	22	3	7*9.5
RS96K	500/660	200-400	280	117	80	52	40	32	6	10.5*15
RS96L	500/660	200-400	280	117	89	57	37	30	6	10.5*15
RS96M	500	50-200	196	135	113	67	34	20	5	8.2*12
RS96N	500	250-400	245	115	87	58	39	26	6	10.5*18
RS96P	700	125-200	250	130	80	50	38	25	6.3	10.5*26
RS96Q	250	315-400	195	100	71	38	43	35	9	10.5*15
RS96R	500/660	35-300	197	113	83	53	40	30	6.5	12.2*18
RS96S	50/660	40-250	153	95	68	40	27	20	5	9*18
RS97A	500/660	300-500	450	120	90	58	46	32	6	10.5*18
RS97B	500/660	50-200	295	126	100	74	38	26	6	10.5*18
RS97C	500/660	350-500	460	128	98	70	51	38	6	10.5*18
RS97D	500/660	200-400	288	130	98	72	38	26	6	10.5*18
RS97E	500/660	200-350	300	145	111	77	38	29	5	7*11
RS97F	500/660	200-400	355	145	105	76	41	28	8	10.5*18

Types	Rated voltage(V)	Rate current(A)	Weight(g)	355Dimension(mm)

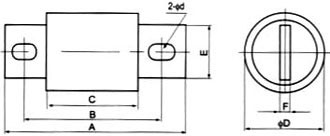

Types	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	ΦD	E	F	Φd
RS97G	500/660	200-400	341	146	110	76	41	29	5	7*9.5
RS97H	500/660	200-400	520	146	110	75	48	36	8	12.5*18
RS97K	500/660	200-400	480	130	100	70	53	42	8	14.2*18
RS97L	500	200-400	420	125	103	48	51	38	6	10.5*18
RS97M	500	400-500	465	145	102	53	51	38	6.3	14.5*30
RS97N	500/660	200-400	353	145	113	88	38	25	6..3	10.5*18
RS98A	500/660	600	635	165	114	56	64	50	8	10.5*18
RS98B	500/660	600	1280	170	130	80	70	50	6	10.5*18
RS98C	500/660	500	720	181	133	86	51	40	10	10.5*15
RS98D	500/660	600	970	180	131	85	64	50	10	14.2*18
RS98E	700	250-400	450	130	90	50	51	38	6.3	14.2*28
RS98F	700	300-400	780	181	130	72	64	50	10	14.2*28
RS98G	700	400-600	1135	175	135	73	63	51	10	12.5*18
RS98H	700	400-500	583	166	118	70	50	38	6	16.2*22
RS98K	700	500-600	996	181	114	50	64	51	9.5	14.2*45
RS98L	700	500-800	1100	167	137	72	70	50	8	10.5*18
RS98M	700	500-600	925	160	108	53	63	50	9	14.2*23
RS98N	700	500-600	1050	180	125	73	60	46	13	14.2*25
RS98P	500	400-500	410	110	80	53	50	40	6	10.5*18
RS99A	500/660	500-600	1058	190	140	90	65	50	10	14.2*18
RS99B	500/660	400-600	1410	203	152	95	64	50	10	10.5*18
RS99C	500/660	400-600	1420	217	157	101	60	50	12	16.2*28
RS99D	500	800-1000	1786	180	127	85	76	61	11.3	16.2*22
RS99E	700	800-1250	1920	200	150	100	90	70	13	20.5*30
RS99F	700	400-600	1200	180	129	72	64	51	9.5	13.5*18
RS99G	700	800-1000	1830	195	150	95	75	61	10	13*18
RS99H	500	500-600	560	145	130	46	52	38	8	15*29
RS99J	500	400-600	962	175	123	70	65	50	10	14.2*30
RS99K	500	400-600	1023	181	133	72	64	51	10	13*33
RS99L	500	400-600	1010	175	125	71	65	50	10	14.2*33
