Bolt Connected Square Pipe Type Fuse Links

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: TypesRated voltage(V)Rate current(A)Weight(g)Dimension(mm)OursEquivalentsRS71NG166080-160340See picture TypesRated voltage(V)Rate current(A)Weight(g)Dimension(mm)OursEquivalentsABCDEFHΦdRS711BNGT00 HLS00380/80032-200198.55077100292725111RGS30A3NE8766010-16012250779821202389RGS30B--66010-1601105077 …

Detail

Messages

Product Detail:

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents

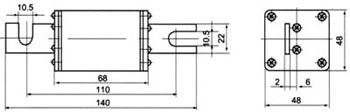

RS71	NG1	660	80-160	340	See picture

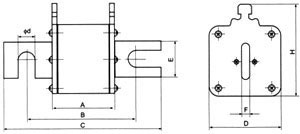

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	D	E	F	H	Φd
RS711B	NGT00 HLS00	380/800	32-200	198.5	50	77	100	29	27	2	51	11
RGS30A	3NE87	660	10-160	122	50	77	98	21	20	2	38	9
RGS30B	--	660	10-160	110	50	77	98	21	20	2	33.5	9
RGS30C	NS0-250V	250	30-50	138	50	100	115	25	16	2	45	7
RGS30C	RS0-500V RS3-500V	500	10-50	163	70	120	135	25	16	2	45	7

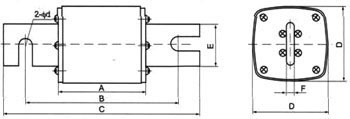

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	D	E	F	Φd
RS71B	LK-NES	800	50-200	370	76	104	135	43	22	6	10.5
NGT1	RS6-1	380/660/1000	100-250	458	68	110	140	48	25	6	10.5
NGT2	RS6-2	380/660/1000	200-400	654	68	110	140	58	32	6	10.5
NGT3	RS6-3	380/660/1000	355-630	920	68	110	140	67	38	6	10.5

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	D	E	F	H	Φd
RGS36	RS0-250v	250	80-100	277.5	50	100	120	40	20	2	43	7*10.5
RGS32	RS0-250V	250	150-200	400	52	100	125	46	29	3	50	9*13.5
RGS33	RS0-250V	250	350	542	52	100	130	55	30	3	60	9*13.5
RGS34	RS0-250V	250	480	950	56	100	135	66	40	5	72	13*19.5
RGS36	RS0-500V	500	80-100	336.5	70	120	140	40	20	2	43	7*10.5
RGS32	RS0-500V	500	150-200	482	72	120	145	46	29	3	50	9*13.5
RGS33	RS0-500V	500	200-350	670	72	120	150	46	30	3	60	9*13.5
RGS34	RS0-500V	500	480	1058	76	120	155	66	40	5	72	13*19.5
RGS33	RS0-750V	750	250-320	678	72	120	150	55	30	3	60	9*13.5
RGS34	RS0-750V	750	350	1080	76	120	155	66	40	5	72	13*19.5
RGS36	RS3-500V	500	80-100	330	70	120	140	40	20	2	43	7*10.5
RGS32	RS3-500V	500	150	482	72	120	145	46	29	3	50	9*13.5
RGS33	RS3-500V	500	200	678	72	120	150	555	30	3	60	9*13.5
RGS34	RS3-500V	500	250	1080	76	120	155	66	40	5	72	13*19.5
RGS34	RS3-500V	500	300	1080	76	146	172	66	40	5	66	13*19.5
RGS39	RS3-500V	500	500	1760	76	136	173	85	40	5	91	17*24
RGS34	RS3-750V	750	200-250	1080	76	120	155	66	40	5	75	13*19.5
RGS34	RS3-750V	750	600	1730	76	120	155	66	40	10	145	13*19.5

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents

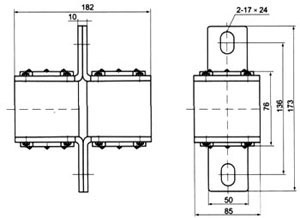

RGS39	RS3-750v	750	700	1730	See picture

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents

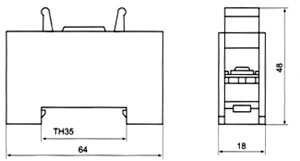

RS72A(Z)	--	660	80-315	238	See picture

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)

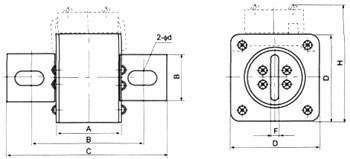

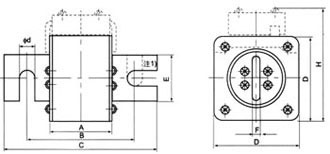

Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	D	E	F	H	Φd
RS72B	A1-66C-D8	660	200-400	360.5	44	76	108	50	25	6	68	10.5
RS72C	A1-66C-D1	660	315-400	383	44	108	140	50	25	6	68	10.5
RS73A	A2-66C-D8	660	250-630	527	44	76	108	60	32	6	78	10.5
RS73B	A2-66C-D1	660	250-630	551	44	108	140	60	32	6	78	10.5
RS73D	--	660	200-400	550	44	92	127	60	32	6	78	13
RS74A	A3-66C-D8	660	400-800	810	44	76	108	73	38	6	78	12.5
RS74B	A3-66C-D1	660	500-800	860	44	108	140	73	38	6	90	12.5
RS74D	--	660	500-800	944	44	92	127	73	40	6	90	13
RS75A	--	660/1000	450-800	700	66	108	140	60	32	6	90	12.5
RS75B	--	660/1000	500-800	770	76	108	140	60	32	6	78	12.5
RS76AYK	170M61...	660/1000	630-1000	1045	66	108	140	72	38	6	78	10.5
RS76C	170M62...	660/1000	630-1000	1436	76	108	140	72	38	6	90	12.5
RS450	3NET	1500	450	1965	172	208	240	74	32	6	92	12.5

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	D	E	F	H	Φd
RS76A	--	660/1000	500-800	1055	66	102	140	72	38	6	90	12.5*22
RS76B	--	660/1000	500-800	1040	66	108	140	72	38	6	90	12.5*22
RS89B	--	1000	1600	2800	69	107	150	105	38	120	120	14*23

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	D	E	F	H	Φd
NGT1Q	3NE32...	660/1000	100-250	465	66	108	140	48	20	6	58	10.5
RS75AQ	3NE33...	660/1000	300-630	730	66	108	140	60	32	6	78	12.5

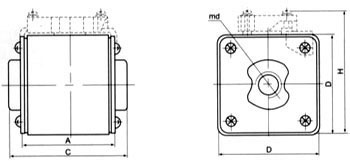

10Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	C	D	H	md
RS550	--	2000	550	1960	130	136	73	85	12
NGT3M	--	380/660/1000	355-630	910	67	76	67	85	12
RS77	A1-66C-TS	660	200-400	354	42	50	50	68	8
RS77A	A0-66C-TS	660	80-160	225	39	47	40	58	8
RS77B	A2-66C-TS	660	400-630	518	42	50	60	78	10
RS77C	A3-66C-TS	600	630-1000	8665	45	54	74	92	12
RS77H	--	1000	200-400	528	66	76	50	68	8
RS78	3NE43..6B	660	315-500	660	66	77	60	77	10
RS79	--	1000	400-1000	1655	92	106	74	92	12
RS79A	170M34..	660	200-400	277	46	52	43	61	8
RS79C	--	1000	400-1000	1325	77	85	74	92	12
RS79D	140M63..	1000	800-1000	1170	67	75	74	92	12
RS79E	170M64..	1000	630-1000	1420	75	91	74	92	12
RS550Z	--	2000	550	1985	135	143	74	92	12
RS82	CS5F	500	75-200	325	40	47	47	70	8
RS83	CS5F	500	200-400	450	43	51	57	82	8
RS84	CS5F	500	450-630	830	42	53	72	92	10
RS85	CS10F	500	150-250	740	66	76	60	77	10
RS86	3NE64..	500	300-500	1110	66	77	72	92	10
RS86A(Z)	RSF-4	500/800	800-1250	1200	68	78	85	130	12
RS87	RSF-5	500/1000	125-1600	1320	70	80	105	150	16
RS87A(Z)	RSF-6	800/1000	1600-2500	2216	81	91	120	165	16
RS88A	--	660	800-1600	1240	78	90	105	127	16

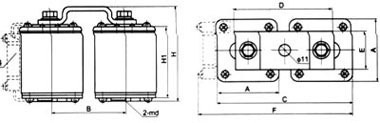

Types		Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Ours	Equivalents	Rated voltage(V)	Rate current(A)	Weight(g)	A	B	C	D	E	F	H	H1	md
RS85-2H	--	1000	1000	1500	60	72	132	95	36	146	93	68	10
RS86-2H	RSF-3-P2K	1000	1400	2504	73	92	162	140	40	180	102	76	10
