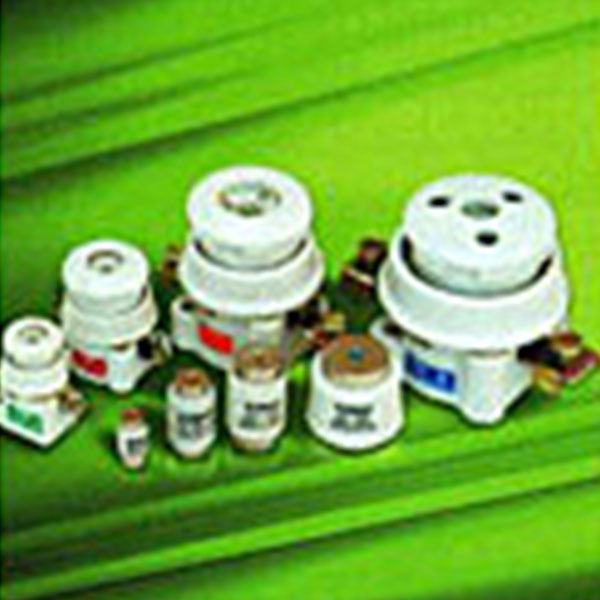

Screw Fuse Bases
Product Detail:

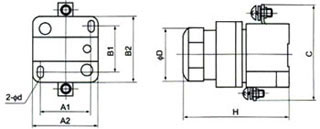

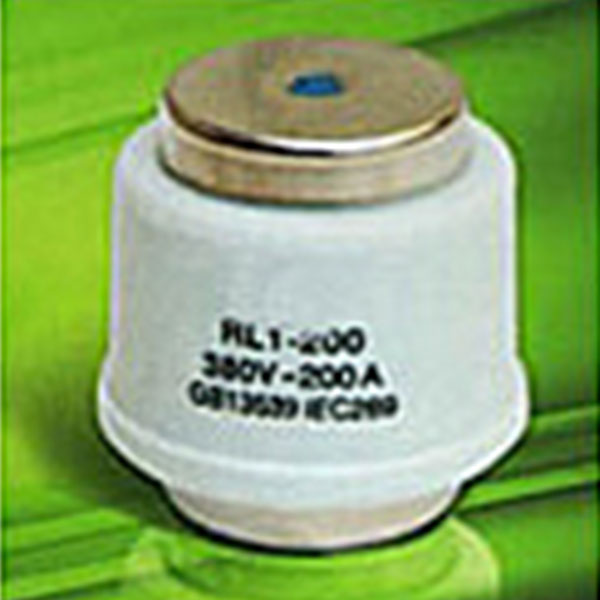

| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||||||
| Size | Type | A1 | A2 | B1 | B2 | C | H | ΦD | Φd | ||||
| RL1-15 | -- | RL1-15 | 380 | 15 | 116 | 24 | 35 | 28 | 41 | 64 | 60 | 33 | 5 |
| RL1-60 | -- | RL1-60 | 380 | 60 | 243 | 34 | 55 | 41 | 55 | 78 | 70 | 48 | 6 |
| RL1-100 | -- | RL1-100 | 380 | 100 | 798 | 45 | 83 | 53 | 83 | 120 | 100 | 70 | 8 |
| RL1-200 | -- | RL1-200 | 380 | 200 | 1460 | 63 | 87 | 64 | 87 | 152 | 110 | 85 | 10 |

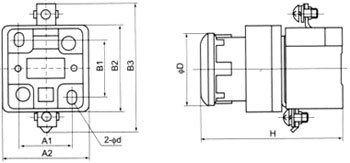

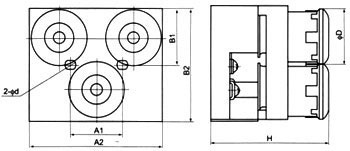

| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||||||
| Size | Type | A1 | A2 | B1 | B2 | B3 | H | ΦD | Φd | ||||
| RO(FB)21 | DII | RL6-25 | 500 | 25 | 159 | 27 | 45 | 30 | 45 | 68 | 72 | 38.5 | 5*6 |
| RO(FB)22 | DIII | RL6-63 | 500 | 63 | 265 | 38 | 53 | 33 | 54 | 85 | 80 | 48 | 5*6 |
| RO(FB)23 | DIV | RL6-100 | 500 | 100 | 840 | 55 | 64 | 45 | 73 | 121 | 115 | 75 | 7*9 |
| FB24 | -- | RO(S)24 | 600 | 25 | 118 | 25 | 35 | 22 | 33 | 56 | 68 | 30 | 4*6 |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||||||
| Size | Type | A1 | A2 | B1 | B2 | B3 | H | ΦD | Φd | ||||
| RO(FB)21-3J | DII | RO21 | 500 | 25 | 604 | 37 | 90 | 42 | 77 | 79 | 79 | 38 | 5*7 |
| RO(FB)22-3J | DIII | RO22 | 500 | 63 | 860 | 37 | 110 | 48 | 95 | 80 | 80 | 48 | 6*10 |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||

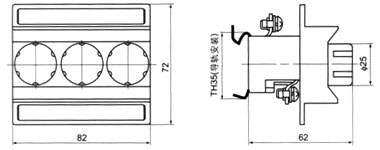

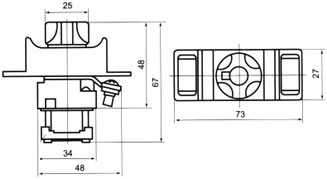

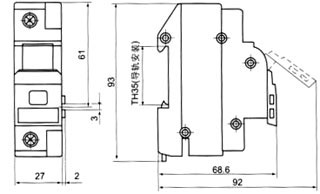

| FB26-16-3J | D01 | RL8B | 500 | 16 | 286 | See picture |
| FB26-63-3J | D02 | RL8B | 500 | 63 | 295 | |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||

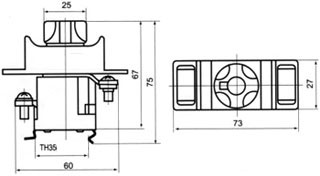

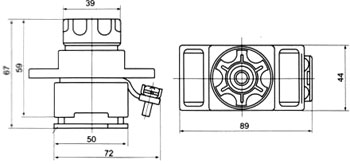

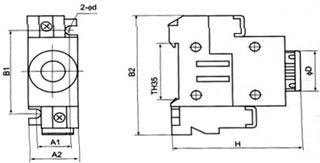

| FB26D-63 | D02 | RO26 | 500 | 63 | 114 | See picture |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||||||
| Size | Type | A1 | A2 | B1 | B2 | H | ΦD | Φd | ||||

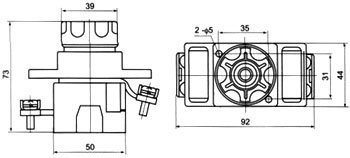

| FB26-16 | D01 | RL8B | 500 | 16 | 83 | -- | 18 | -- | 55 | 59 | 17 | -- |
| FB26-63 | D02 | RL8B | 500 | 63 | 86 | 20 | 27 | 54 | 77 | 72 | 26 | 5 |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||

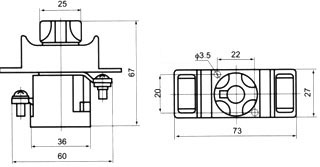

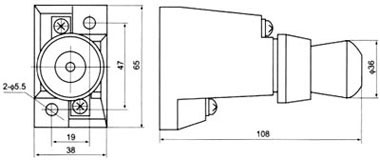

| FB26A-63 | -- | RO26 | 500 | 63 | 63 | See picture |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||
| FB26B-63 | -- | RO26 | 500 | 63 | 80 | See picture |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||
| FB26C-63 | -- | RO26 | 500 | 63 | 74 | See picture |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||
| FB26A-100 | -- | RO26 | 500 | 100 | 194 | See picture |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||
| FB26B-100 | -- | RO26 | 500 | 100 | 228 | See picture |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||
| FB26C-100 | -- | RO26 | 500 | 100 | 226 | See picture |
| Types | Matching with fuse | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |
| Size | Type | |||||
| RL5 | -- | -- | 1140 | 25 | 260 | See picture |
