Non-Filler Renewable Fuse Links
Product Detail:

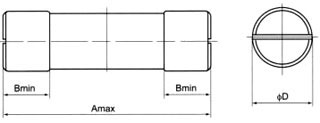

| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||
| General (gG) | Equivalents | A | B | ΦD | |||
| RM1-30 | -- | 250 | 30 | 17.7 | 50.8 | 12.7 | 14.3 |
| RM1-60 | -- | 250 | 60 | 40.3 | 76.2 | 15.9 | 20.6 |
| RM2-30 | RF30 | 250 | 20-30 | 18 | 51 | 12.7 | 14.0 |
| RM2-60 | RF60 | 250 | 60 | 53 | 77 | 19.7 | 20.2 |
| RM3-30 | RFS30 | 600 | 30 | 87 | 128 | 16.7 | 20.2 |
| RM3-60 | RFS60 | 600 | 60 | 125 | 140 | 20.7 | 25.7 |

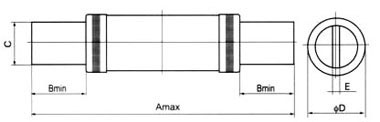

| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||
| General (gG) | Equivalents | A | B | ΦD | E | |||
| RM1-100 | -- | 250 | 100 | 134 | 149.2 | 25.4 | 28.5 | 3.2 |
| RM1-200 | -- | 250 | 200 | 324.5 | 181 | 34.9 | 39.5 | 4.8 |
| RM2-100 | RF100 | 250 | 100 | 98 | 149 | 25 | 27 | 3 |
| RM2-200 | RF200 | 250 | 200 | 146 | 182 | 36.5 | 47.2 | 4.8 |
| RM2-350 | RF225-350 | 250 | 225-350 | 1251 | 220 | 51.8 | 55.5 | 6.4 |
| RM2-500 | RF450-500 | 250 | 450-500 | 1272 | 265 | 61 | 66.5 | 6.4 |
| RM3-100 | RFS100 | 600 | 100 | 246 | 202 | 26.2 | 37.6 | 3.2 |
| RM3-200 | RFS200 | 600 | 200 | 359 | 246 | 36.5 | 47.2 | 4.8 |
| RM3-400 | RFS225-400 | 600 | 225-400 | 1072 | 297 | 51.8 | 66.5 | 6.4 |
| RM3-600 | RFS450-600 | 600 | 450-600 | 1332 | 342 | 61 | 66.5 | 6.4 |
