Yueqing long road electric co.,Ltd

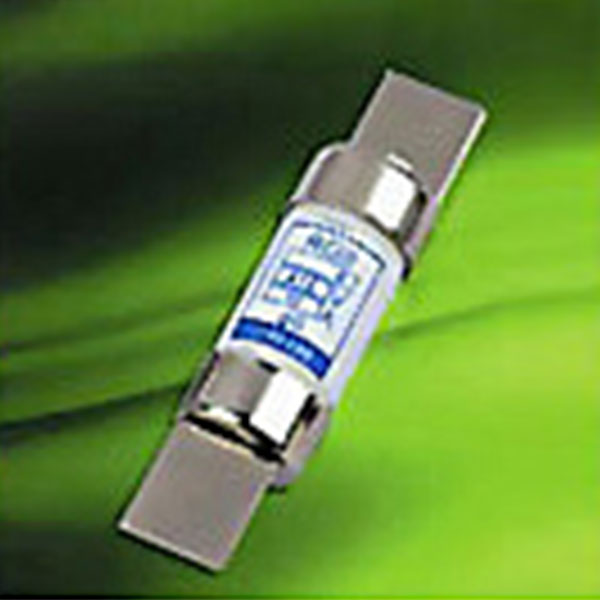

Bolt Connected Fuse Links
Product Detail:
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||||||
| Ours | Equivalents | ||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | ΦA | C | ΦD | E | F | |||
| RG0 | RGS0 | NS | -- | 415 | 1-32 | 15.2 | 32 | 59 | 13.5 | 11 | 0.8 |
| RG0D | RGS0D | NS | -- | 415 | 40-63 | 24 | 39 | 69 | 17.5 | 15 | 1.2 |

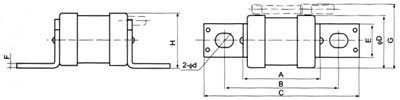

| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||||||||
| Ours | Equivalents | |||||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | A | B | C | ΦD | E | F | H | Φd | |||
| RGOK | RGSOK | NIT | -- | 415 | 1-32 | 14.4 | 34 | 45 | 55 | 13.5 | 11 | 0.8 | 14.5 | 5 |
| RG2 | RGS2 | TIS RT12-63 | -- | 500 | 40-100 | 73.8 | 56 | 75 | 88 | 25.5 | 13 | 1.2 | 27 | 6.5 |
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||||||||
| Ours | Equivalents | |||||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | A | B | C | ΦD | E | F | H | Φd | |||
| RG4(Z) | RGS4(Z) | -- | -- | 660/1000 | 63 | 35 | 49.5 | 63 | 77 | 16.5 | 12.5 | 2 | 18 | 6.5*9 |
| -- | RGS7 | -- | -- | 500 | 100 | 280 | 59 | 83 | 110 | 38 | 25 | 3 | 41 | 11*4 |
| -- | RGS7(Z) | -- | -- | 500 | 100 | 295 | 59 | 83 | 110 | 38 | 25 | 3 | 41 | 11*4 |
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||||||||
| Ours | Equivalents | |||||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | A | B | C | ΦD | E | F | H | Φd | |||
| RG1 | RGS1 | TIA | -- | 500 | 4-35 | 55 | 54 | 73 | 85 | 22 | 9.5 | 1.5 | 25 | 5.5*7.5 |
| RG3 | RGS3 | -- | -- | 500 | 6-63 | 51.1 | 54 | 73 | 85 | 22 | 9.5 | 1.5 | 25 | 5.5*7.5 |
| RG4 | RGS4 | -- | GSG | 660/1000 | 10-63 | 32 | 49.5 | 63 | 77 | 16.5 | 12.5 | 2.0 | 18 | 6.5*9 |
| RG6 | RGS6 | -- | GSA | 500 | 80 | 146 | 68 | 93 | 112 | 31 | 19 | 2.0 | 33 | 9*11.5 |
| RG7 | -- | TCP | -- | 500 | 100 | 228 | 68 | 95 | 114 | 34 | 19 | 2.0 | 35 | 9*11.5 |
| RG7A | RGS7A | -- | PC10D | 500 | 110-150 | 178 | 57 | 99 | 119 | 38 | 24 | 3.0 | 40 | 5 |
| RG11 | RGS11 | -- | CR2L GSB | 250/380 | 16-75 | 25 | 27.5 | 42 | 56 | 16.5 | 12.5 | 2.0 | 17.5 | 6.5*9 |
| RG12 | RGS12 | -- | CR2L GSB | 250/500 | 75-175 | 79.5 | 31.5 | 58 | 80 | 26 | 19 | 3.0 | 27 | 9*11.5 |
| RG14 | RGS14 | -- | GSB | 500 | 5-20 | 55 | 31 | 37 | 46 | 8.5 | 7 | 0.8 | 9.5 | 4.5*6 |
| RG14B | RGS14B | -- | GSB | 500 | 5-20 | 8.5 | 54 | 64 | 73 | 8.5 | 7 | 0.8 | 9.5 | 4.5*6 |
| RG15 | RGS15 | -- | CR2L GSB | 250/500 | 200 | 120 | 34 | 60 | 88 | 30 | 25 | 3.0 | 36 | 11*13 |
| RG17 | RGS17 | -- | GSB | 500 | 40-100 | 62.3 | 54 | 78 | 96 | 22.2 | 20.5 | 2 | 24 | 9*12 |
| RG18 | RGS18 | -- | CR6L | 600 | 75-150 | 14.7 | 40 | 70 | 95 | 30 | 25 | 3.2 | 33 | 11*13 |
| RG19 | RGS19 | -- | CR6L | 600 | 200-250 | 219 | 43 | 82 | 107 | 37 | 30 | 4.0 | 42 | 11*13 |
| RG0H | -- | AAO | 500 | 2-32 | 18 | 34 | 72 | 84 | 13.5 | 9.4 | 1.2 | 15 | 5.5*7.8 | |
| RG4AD | RGS4AD | -- | 250GH | 250 | 32-160 | 39 | 29 | 56 | 77 | 23.8 | 20 | 3 | 25.5 | 9*14 |
| RG4A | RGS4A | -- | 660GH | 660 | 125-200 | 53 | 50 | 77 | 98 | 23.8 | 20 | 3 | 25.5 | 9*14 |
| RG4B | RGS4B | -- | 660GH | 660 | 225-315 | 75 | 50.5 | 82 | 108 | 31 | 25 | 3 | 34 | 10.5*16 |
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | ||||||||||
| Ours | Equivalents | |||||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | A | B | C | ΦD | E | F | H | Φd | |||
| RG2-1 | RGS2-1 | -- | PC63 | 500 | 32-63 | 81 | 51 | 80 | 98 | 25 | 19 | 2.0 | 28.5 | 9 |
| RG5 | RGS5 | -- | GSB | 1200 | 6-32 | 91 | 110 | 121 | 138 | 26 | 13 | 1.5 | 27 | 6.5 |
| RG5-1 | RGS5-1 | -- | -- | 1200 | 16-75 | 98 | 107.5 | 127 | 140 | 25.5 | 13 | 1.3 | 28 | 6.5*9 |
| RG5D | RGS5D | -- | GSB | 1200 | 32-63 | 107 | 110 | 124 | 138 | 26 | 13 | 1.5 | 27 | 6.5 |
| RG13 | RGS13 | -- | PC25 | 500 | 2-25 | 37 | 57 | 75 | 91 | 15 | 13 | 1.5 | 20.5 | 6.5 |
| RG16 | RGS16 | -- | GSB | 500 | 25-40 | 29 | 56 | 78 | 95 | 14 | 13 | 1.5 | 17 | 6.5 |
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||||||||
| Ours | Equivalents | ||||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | A | B | C | ΦD | E | F | Φd | |||
| RG8 | RGS8 | TC | -- | 415/550 | 125-160 | 212 | 63.5 | 110 | 135 | 38 | 19 | 3.0 | 8.5*15 |
| RG8B | RG8B | -- | -- | 415/550 | 80-100 | 60.9 | 60 | 74 | 94 | 22 | 20 | 3.0 | 6*9 |
| RG9 | RG9 | RT15-200/B2 | -- | 415/550 | 200 | 24.2 | 74 | 110 | 135 | 40 | 19 | 3 | 9.5*15 |
| RG10 | RGS10 | RT15-350/B3 | -- | 415/550 | 250-350 | 451 | 76 | 112 | 138 | 53 | 25 | 3 | 9*15 |
| RG10B | RGS10B | TM | -- | 415/550 | 355-400 | 563 | 73.5 | 110 | 135 | 60 | 25 | 4 | 8.5*15 |
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||||||||
| Ours | Equivalents | ||||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | A | B | C | ΦD | E | F | Φd | |||
| RG77 | RGS77 | -- | GSG | 660/1000 | 100-500 | 455 | 58 | 85 | 110 | 38 | 25 | 6 | 11*14 |
| RG77YK | RGS77YK | -- | -- | 660/1000 | 100-500 | 495 | 58 | 110 | 137 | 38 | 25 | 6 | 10.5*22 |
| RG77F | RGS77F | -- | -- | 660/1000 | 100-350 | 335 | 46 | 80 | 104 | 34.5 | 25 | 6 | 10*16 |
| RG19 | RGS19 | -- | CR6L | 600 | 600 | 219 | 43 | 97 | 122 | 36.5 | 30 | 8 | 11*13 |
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||||||||
| Ours | Equivalents | ||||||||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | ||||||||||

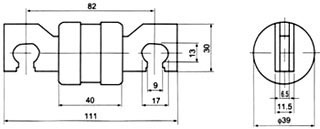

| RG8M | RGS8M | -- | -- | 415/550 | 80-315 | 507 | See picture | ||||||
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||
| Ours | Equivalents | ||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | ||||

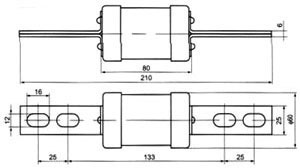

| RG10C | RGS10C | -- | -- | 500/1000 | 415/630 | 840 | See picture |
| Types | Rated voltage(V) | Rate current(A) | Weight(g) | Dimension(mm) | |||
| Ours | Equivalents | ||||||
| General (gG) | Fast(aR) | General (gG) | Fast(aR) | ||||

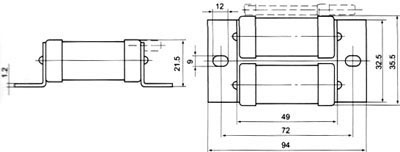

| RG44(Z) | RGS44(Z) | -- | GSG | 660/1000 | 75-160 | 78 | See pictrue |
