Product Detail:

1.Application

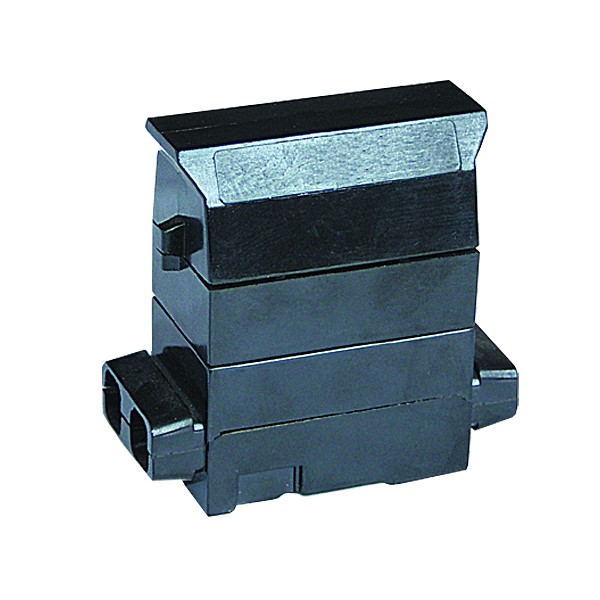

FS cutouts are made of high grade phenolic moulding power having high mechanical and dielectric strength. The body possesser non-hygroscopic and non-tracking qualities. Terminal contracts are of tinned brass with phosphor bronze back up compression spring capable of providing flawless service even after years of use.
It has features like: all components are inter-locked. Sealing provision to aviod unauthorised access. Common body from 15amps to 100amps. Terminal are suitable for aluminium/copper conductors upto 35sq.mm loop in and loop out cabling contacts available. FS insulated service cutouts conform to BS 1361•1986 standard SR H fuses conform to BS1361.1986. The available current is 60# 60/80A, 100# 60/80A, 100# 100A, 100# 1P+N 60/80A, 100# 1P+N 100A.
