Surge Proctect Device for Power Distribution System
Product Detail:
1.Application:
Expensive electronic equipment is being increasingly used in all kinds of business, industry, government and enterprise anddomestic households. Electronic discharge, over voltage cause by switching or by lightning often cause these highly sensitiveunits to fail.
Electronic equipment is especially prone up to 1.5km way from lightning strikes due to the electromagnetic fields and cable-bome over voltages. However, effective protection is now available.
Over voltage protective devices for TN-S,TN-C,TN-C-S,TT and IT power systems and plants are subdivided into Classes A,B,Cand D depending on their application area, accordingly to DIN VDE 0675-6 (11.89). Compex offers over voltage protective devicesfor Classes B to D, witch cover the complete installation on the low volage side.
2.Feature:
Metal-oxide varistor Arresters still work after frequent operation
An arrester module can be changed with the mains voltage on
1-4 pole Pre-wired arrester blocks Simple installation via the marked terminals
Thermal isolating device with optical indication, permanent check of arrester serviceability
An extremely short response time, a low protection level and a high current diversion capacity combined with long life.
No follow-up current can be registered after the surge has decayed.
If the surge arrester is damaged by overloading, the integral isolating device breaks the connectionto the mains. This is signalled by a red fault indicator.
3.Mounting:
The surge arrestor can easily be installed in any distribution box or switchgear cabinet by snap-fitting to any commercial 35 mmtophat rail. The multi-pole arresters are connected together by an earthing bridge at the factory, so that there is only one earth (PE)connection to make on site.

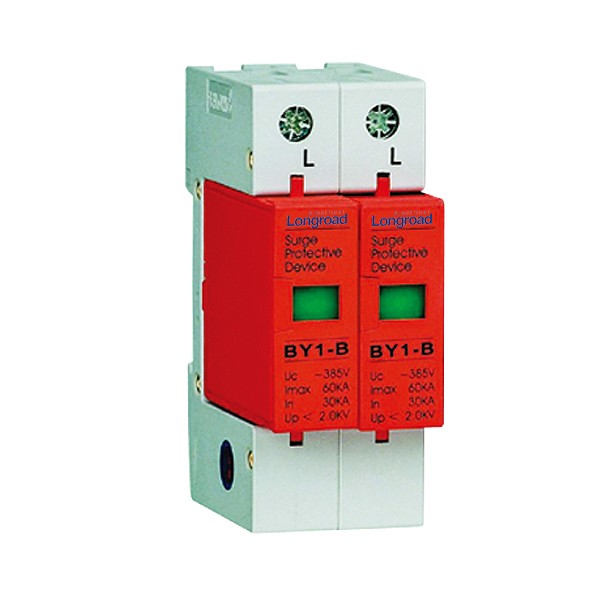

4.BY1-B/4-385-30 & BY1-B/4-385-40
| Type | BY1-B/4-385-30 | BY -40 |
| Class | B | B |
| Rated voltage Un(V) | 220/380 | 220/380 |
| Maximum continuous operating voltage Us (V) | 385 | 385 |
| Protection level Up(KV) | ≤2.0 | ≤2.0 |
| Nominal discharge current (8/20uS) In (KA) | 30 | 40 |
| Max discharge current (8/20uS) Imax (KA) | 60 | 80 |
| Response time T (ns) | <25 | <25 |
| Temperature range | -40oC +80oC | -40oC~ +80oC |
| Color (module/base) | Orange red/gray | Orange red/gray |
| Material | PBT | PBT |
| Back up fuse | 63A gl | 63A gl |
| With alarm model | BY1-B/4-385-30B | BY1-B/4-385-40B |
| With remote control contact model | BY1-B/4-385-30X | BY1-B/4-385-40X |
5.BY2-30 & BY2-60
| Type | BY2-30 | BY2-60 |
| Test class | I | I |
| class | B | B |
| Rated voltage Un (V) | 220/380 | 220/380 |
| Max continuous operating voltage Uc (V) | 420 | 420 |
| Insulated resistance Riso ( Ω) | ≥1010 | ≥1010 |
| Protection level Up (KV) | ≤4.0 | ≤4.0 |
| Nominal DC spark voltage Un (KA) | 2.95KV (+25%/-40% ) | 2.95KV (+25%/-40% ) |
| Nominal discharge current (8/20uS) In (KA) | 30 | 60 |
| Charge Q (As) | 15 | 30 |
| Power W/R (KJ/Ω) | 225 | 900 |
| Response time T (ns) | <100 | <100 |
| Air humidity | ≤95% | ≤95% |
| Temperature range | -40oC~ +80oC | -40oC~ +80oC |
| Protection grade | IP20 | IP20 |
| Max back up fuse | 205A gl | 205A gl |
6.BY4-60 & BY4-80,BY4-100
| Model | BY4-60 | BY4-80 | BY4-100 |
| Test to | IEC61643-1 | IEC61643-1 | IEC61643-1 |
| class | B | B | B |
| Rated voltage Un (V) | 220/380 | 220/380 | 220/380 |
| Max continuous operating voltage Uc (V) | 385 | 385 | 385 |
| Shock current limp (10/35uS) (KA) | 7.5 | 12 | 15 |
| Charge Q (As) | 2.5 | 3.75 | 5 |
| Protection level Up (KV) | ≤2.0 | ≤2.5 | ≤3.0 |
| Maximum discharge current Imax (8/20uS) (KA) | 60 | 80 | 100 |
| Nominal discharge current (8/20uS) In (KA) | 30 | 40 | 60 |
| Response time T (ns) | <25 | <25 | <25 |
| Color (module/base) | Orange red/gray | Orange red/gray | Orange red/gray |
| Temperature range | -40oC~ +80oC | -40oC~ +80oC | -40oC~ +80oC |
| Protection grade | IP20 | IP20 | IP20 |
| Max back up fuse | 63~100A gl | 63~100A gl | 63~100A gl |

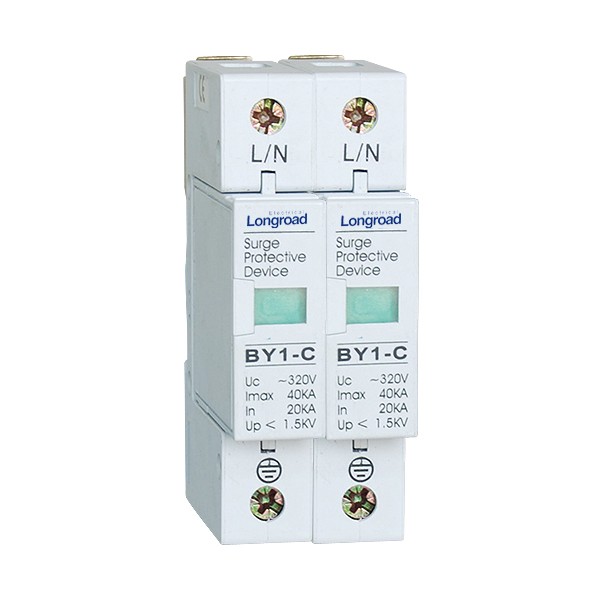

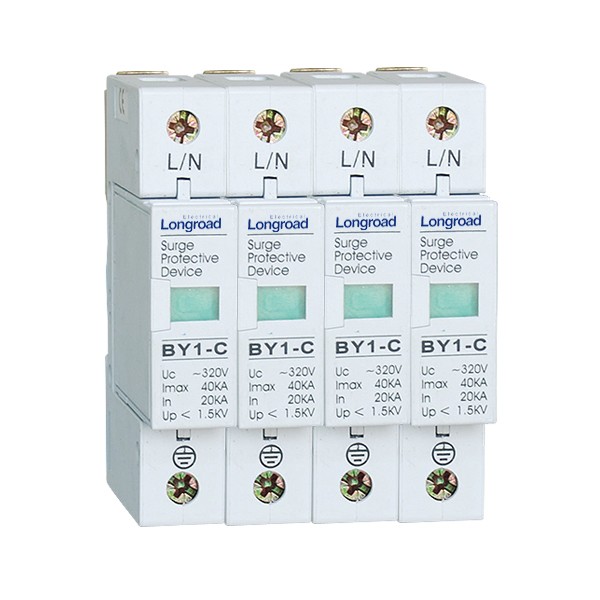

7.BY1-C
| Type | BY1-C | |||||
| Class | C | |||||
| Rated voltage Un (V) | 110 | 220/380 | ||||
| Max continuous operating voltage Uc (V) | 140 | 275 | 320 | 385 | 420 | 550 |
| Protection level Up (KV) | ≤0.8 | ≤1 | ≤1.5 | ≤2.0 | ≤2.5 | |
| Max discharge current Imax (8/20uS) (KA) | 40 | |||||
| Nominal discharge current (8/20uS) In (KA) | 20 | |||||
| Response time T (ns) | <25 | |||||
| Temperature range | -40oC~ +80oC | |||||
| Material | PBT | |||||
| Color (module/ base) | Grey/gray | |||||
| Max back up fuse | 32A gl | |||||
| Normal model | BY1-C/4-420-20,BY1-C/4-385-20 | |||||
| With alarm model | BY1-C/4-420-20B | |||||
| With remote control contact model | BY1-C/4-420-20X | |||||
| Single phase 2P combined to single phase system | BY1-C/2-320-20 | |||||
8.BY1-C/3+1-320-20 & BY1-C/2+1-320-20
| Type | BY1-C/3+1-320-20 | BY1-C/2+1-320-20 | |||
| Test to | IEC61643-1 | IEC61643-1 | |||
| class | C | C | |||
| Rated voltage Un (V) | 380 | 220 | |||
| Max continuous operating voltage Uc (V) | 320 | 385 | 420 | 550 | 320 |
| Protection level Up (KV) | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.5 | ≤1.5 |
| Max continuous operating current (A) | 300 | 20 | |||
| Nominal discharge current (8/20uS) In (KA) | N-PE20 N-PE40 | 20 | |||
| Response time T (ns) | <100 | <100 | |||
| Color (module/N-PE) | Gray/blue | Gray/blue | |||
| Protection grade | IP20 | IP20 | |||
| Max back up fuse | 32A gl | 32A gl | |||
9.BY1-D/2 & BY1-D/4
| Type | BY1-D/2 | BY1-D/4 |
| Class | D | D |
| Rated voltage Un (V) | 220 | 380 |
| Max continuous operating voltage Uc (V) | 320 | 220 |
| Protection level Up (KV) | ≤1.0 | ≤1.0 |
| Max discharge current Imax (8/20uS) (KA) | 10 | 10 |
| Nominal discharge current (8/20uS) In (KA) | 5 | 5 |
| Response time T (ns) | <25 | <25 |
| Temperature range | -40oC~+80oC | -40oC~+80oC |
| Max back up fuse | 16A gl | 16A gl |
| Material | PBT | PBT |
| Color (module/base) | Yellow/gray | Yellow/gray |
| Normal model | BY1-D/2-320 | BY1-D/4-320 |
| With alarm model | BY1-D/2-320B | BY1-D/4-320B |
| With remote control contact model | BY1-D/2-320X | BY1-D/4-320X |
10.BY3-2.5/150,BY3-4.0/320,BY3-6.0/420
| Type | BY3-2.5/150 | BY3-4.0/320 | BY3-6.0/420 |
| Class | D | D | D |
| Rated voltage Un (V) | 110 | 220 | 220 |
| Max continuous operating voltage Uc (V) | 150 | 320 | 420 |
| Insulated resistance risol (M Ω) | >100 | >100 | >100 |
| Protection level Up (KV) | ≤0.8 | ≤1.0 | ≤1.5 |
| Max discharge current Imax (8/20uS) (KA) | 10 | 10 | 0 |
| Nominal discharge current (8/20uS) In (KA) | 5 | 5 | 5 |
| Response time T (ns) | <100 | <100 | <100 |
| Open voltage (1.2/50uS) Uoc (kV) | 2.5 | 4.0 | 6.0 |
| Temperature range | -40oC~ +80oC | -40oC~ +80oC | -40oC~ +80oC |
| Protection grade | IP20 | IP20 | IP20 |
| Color | Yellow | Yellow | Yellow |
| Material | PBT | PBT | PBT |
