BYW Surge protective device
Product Detail:
Introduction
BYW series surge arrestor is applied in satellite TV high frequency, satellite signal receiver, microwave machine station, the feed system of moving communication, which is to avoid the damage to the receiving equipment caused by over voltage of feed inductance.

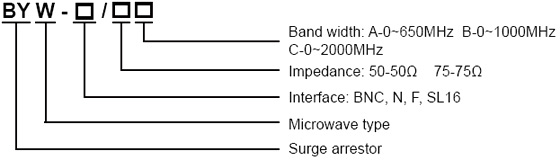

Model and meaning
Technical Parameters :
| Item | BYW-BNC/75C | BYW-BNC/50C | BYW-N/50C | BYW-N/50B | BYW-F/75C | BYW-SL16/50A | |
| operating voltage Un | DC68V/AC130V/AC280V | ||||||
| Maximum continuous operating voltage | DC30V | ||||||
| Normal dischargecurrent In | 10kA(8/20µs) | ||||||
| Interface form | BNC/75 | BNC/50 | N(L16) | N(L16) | F(FL10) | UHF(SL16) | |
| Frequency range | <600V | ||||||
| Protective level | 0-2000 | 0-2000 | 0-2000 | 0-1000 | 0-2000 | 0-650 | |
| Response time | ≤1.2 | ||||||
| Insertion loss | ≤0.1db | ||||||
| Wave impedence | 75Ω | 50Ωs | 75Ω | 50Ω | |||

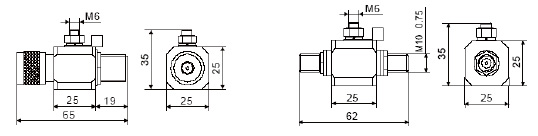

Dimension
Installation Location and Application
Installed at the joint of LPZOB and LPZ1.Used in the system such as the air port's navigating station, (NDB) long wave communication station, small power of short wave communication station, BP paging transmitter, closed-circuit TV net, VSA satellite TV, satellite acception station of the securities, microwave communication receiving and dispatch station, MMDS microwave communication and GPS global position system.
Product Features
1. Large thunder flow and can be repeated using after lightning
2. Small stationary wave ratio, little insertion loss.
3. Convenient installation made by standard interface.
