BYX-RJ45 Surge protective device

BYX-RJ45 Surge protective device

Category：- Surge Protective Device

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: BYX-RJ45 is special used in the network system and its different types can satisfydifferent defence thunder areas. The connector of its input and output is RJ45 male/female connector, which is easily connected and installed. The design of the product is according with IEC1643-2DRAFT standard, and it is main used in service equipment, inner LAS and HuB, and boardband RJ45 interface protection for protecting theequipment which will be damaged by the over voltage of the earth or the line inductance.


Detail

Messages

Product Detail:

Introduction

BYX-RJ45 is special used in the network system and its different types can satisfydifferent defence thunder areas. The connector of its input and output is RJ45 male/female connector, which is easily connected and installed. The design of the product is according with IEC1643-2DRAFT standard, and it is main used in service equipment, inner LAS and HuB, and boardband RJ45 interface protection for protecting theequipment which will be damaged by the over voltage of the earth or the line inductance.

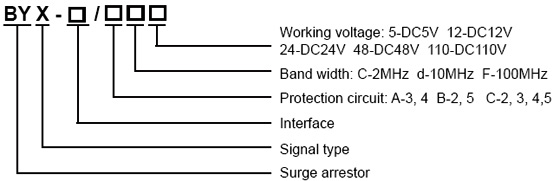

Model and meaning


Technical Parameters

ItemBYX-RJ45

DD5ED5DD12ED12DD24ED24ED48ED48
operating voltage UnDC5VDC12VDC24VDC48V
Maximum continuous operating voltageDC6VDC15VDC30VDC60V
Voltage limiting Up≤40V≤60V≤120V≤200V
Normal discharge current In3kA
Impulse protective voltage Ur(1kv/?s)≤600V
Frequency range10MHz
Insertion loss<0.3db
Interface formRJ45
Protective feet1,2,3,63,4,5,61,2,3,63,4,5,61,2,3,63,4,5,61,2,3,63,4,5,6
Protective wayFull protective mode
Response time<1ns
Outer covering materialShiled aluminum

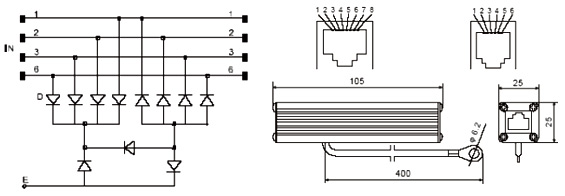

Electric principal & Dimension


Product Features

1. Small section of return circuit , excellent protective performance.

2. Little rest voltage, fast response.

With double protective of the over voltage and over current

Installation Location and Application

1. Installed at the RJ45 interface of the data line between LPZ1 and LPZ3.

2. Applied in various computer network such as ETHERNET, LAN, Token-Ring Network),

Router, server, Hub, boardband.
