SLK1 series decoupling element

Category:- Surge Protective Device

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: SLK1 series decoupling element is applied in the low voltage distribution system, which is used for SPD's decoupling. When used in an internet, the circuit length of two protectors is less than 5m, the decoupling element should be connected to make balance.


Detail

Messages

Product Detail:

Usage and application scope

SLK1 series decoupling element is applied in the low voltage distribution system, which is used for SPD's decoupling. When used in an internet, the circuit length of two protectors is less than 5m, the decoupling element should be connected to make balance.

parameters

typeSLK1-35SLK1-63
rated voltage380V~380V~
rated frequency50Hz50Hz
current35A63A
inductance15μH ± 20%15μH ± 20%

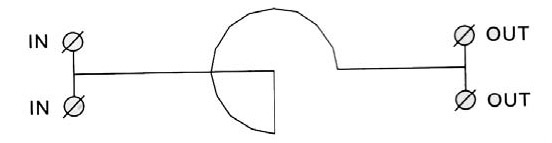

Electric principal

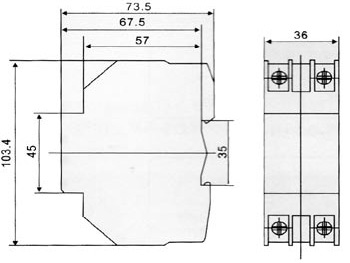

Outline and installation size
