BYT Surge protective device
Product Detail:
Introduction
BYT series coaxial signal SPD, which is suiting to the monitoring system of close-circuit TV, security system, satellite communication system and the computer net system of coaxial signal transmission. It is designed according to the features of the signal transmission system which is low signal amplitude, high transmission frequency, weak anti-interference ability and easily to be damaged by over voltage shocked by thunder and surge. Products have lots of coaxial interface, such as BNC, N, TNC, L9, CC4 and FL10.

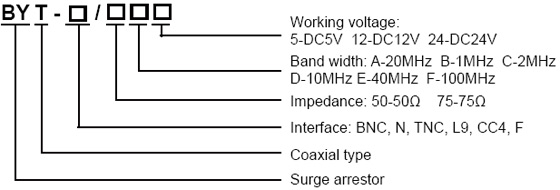

Model and meaning
Technical Parameters :
| Item | BYT-BNC/ | BYT-N/ | BYT-TNC/ | BYT-L9/ | BYT-CC4/ | BYT-FL10 | ||||||||
| 75D24 | 75E24 | 50D24 | 50E24 | 50D24 | 50E24 | 50D24 | 50E24 | 50D24 | 50E24 | 50D 24 | 50E 24 | 75D 24 | 75E 24 | |
| operating voltage Un | DC24V | |||||||||||||
| Maximum continuous operating voltage | DC30V | |||||||||||||
| Normal dischargecurrent In | 10kA (8/20 µs) | |||||||||||||
| Interface form | BNC | BNC | N | TNC | L9 | CC4 | FL10 | |||||||
| Frequency range | 10 | 40 | 40 | 40 | 40 | 40 | 10 | 40 | 10 | 40 | 10 | 40 | 10 | 40 |
| Protective level | <120V | |||||||||||||
| Response time | ≤10ns | |||||||||||||
| Insertion loss | ≤0.1db | |||||||||||||
| Wave impedence | 75Ω | 50Ω | 75Ω | |||||||||||

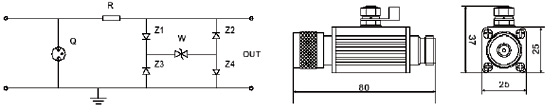

Electric principal & Dimension
Product Features
1. Large thunder flow, 10kA, 8/20µS
2. Little rest voltage and insertion loss.
3. Fast response time and convenient installation.
Installation Location and Application
1. Installed at BNC, N, TNC, L9, CC4 and FL10 interface between LPZOB and LPZ3.
2. Applied in close-circuit TV, monitoring system, guard system, and the computer net system of coaxial signal transmission, satellite communication system VSAT.
