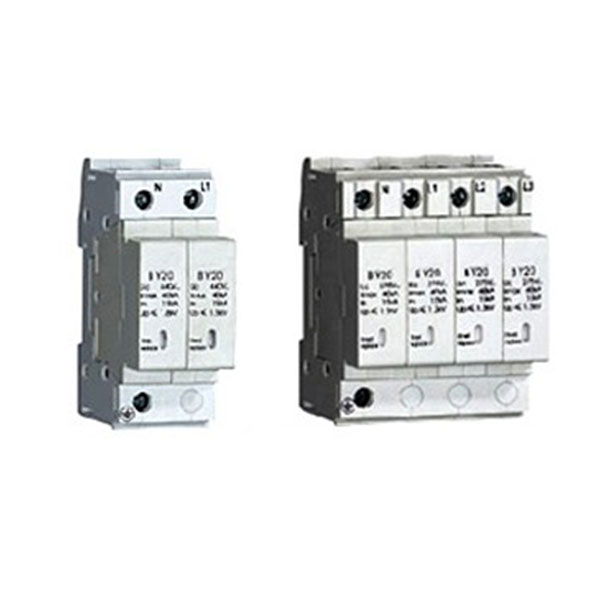

BY20 Surge protective device

Category:- Surge Protective Device

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: BY20 type surge protective device (short name "SPD") is suitable for AC 50/60 Hz,380V and the following electric power systems,such as TT, IT, TN-S, TN-C, TN-C-S. It protects the electric network shocked by the thunder or over voltage


Detail

Messages

Product Detail:

Usage and application scope

BY20 type surge protective device (short name "SPD") is suitable for AC 50/60 Hz,380V and the following electric power systems,such as TT, IT, TN-S, TN-C, TN-C-S. It protects the electric network shocked by the thunder or over voltage.

Working condition:

 1.Height: not more than 2000m

 2. Operating temperature : normal -5~+40˚C       Enlarge range: -40~+80˚C

 3. Relative humidity: on condition that room temperature 30%~90%

 4. Installed at no notability shocked and virated place

 5. Don't be contained in explosion medium,the medium such as air and dust (including conduction dust ) shouldn't come to the degree that can corrode metal or damage insulation.

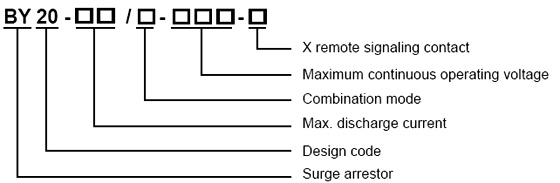

Model and meaning


Tripping device

There's tripping device designed on the modular of the protector. When the protector is over heat or shocked, the tripping device can automatically separate it from the electric net, at the same time showing the indication signal. It's green when the protector is normal, red when tripping.

Remote signaling contact

The products can be produced available with the accessory of remote signaling contact. If one or more of modular of the protector is in malfuction, the contact will be closed, and sending the malfunction signal.

Principal parameters

Maximum continuous operating voltage : Uc 275    440 V~

Test grade:II

Voltage protect level: Up≤ 1.2    1.8    2.0 kV

Maximum discharge current : (8/20μS) Imax    12    15    40    62kV

Nominal discharge currrent: (8/20μS) In    8    5    15    30kA

Remote communication terminal parameter

Type of remote communication terminal
Active
Terminal normal powerUN/INAC: 250V/0.5A DC: 250V/0.1A, 125V/0.2A, 75V/0.5A
Conductor section
Maximum single line: 1.5mm2

Main Structure and Operating Principle

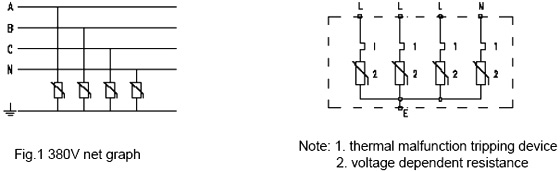

n three-phase four- line system , three phase lines and one zero line are connected protective device to the earth cable . (figure 1 ) . In normal situation , the protective device is high resistance , when the over voltage brings for electric network shocked by thunder or other reasons , the protective device will rapidly transmit in ns , then lead the voltage into earth and protect the electric equipment . As the surge voltage through the protective device and after disappear it will recover to high resistance and not influence the normal operating.


Item8-2758-44015-27540-44040-27540-44065-27565-440
Maximum continuous operating voltageUc275V~440~275V~440V~275V~440V~275V~440V~
Nominal discharge currrent:In225515152020
Maximum discharge currentImax88151540406565
Voltage protect level Up5kA≤1.2kV≤1.8kV≤1.2kV≤1.8kV≤1.2kV≤1.8kV≤1.5kV≤2.0kV
Response time ns≤25ns
Max. fuse intensity125AgL/Gg100AgL/Gg

Short circuit current intensity16AgL/Gg25AgL/Gg50AgL/Gg80AgL/Gg
Operating temperature area40˚C ~+ 80˚C
Conductor sectionMin 1.5mm?sibgle lead, max. 35mm multi-twisting lead/35mm single laed
Installation frame35mm rail
Out casered hot shrink material
Protection classIP20
Dimensionone stnadard module width

Installation

1. It is installed by standard 35 mm rail.

2. The earth cable should choose the double color wire 4mm2 whose length is not longer than 500 mm.

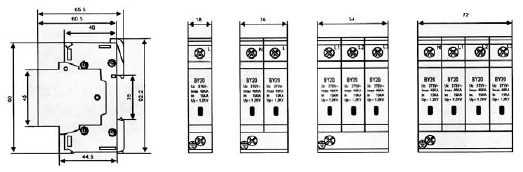

3.To avoid the influence to the electric net after the protector is in malfuction, the protector connected to L line should be in series connect with a fuse. The appearance and installation dimension refer to the Fig. 3.


Adjustment, operation, maintenance

1. There's no need to adjust the protector after installation.

2. The protector can automatically protect the electric net should it's installed rightly.

3.When operating, check whether the modular scutcheon is red, at the same time check whether the indication red light is lighting, then can change the malfunction device.
