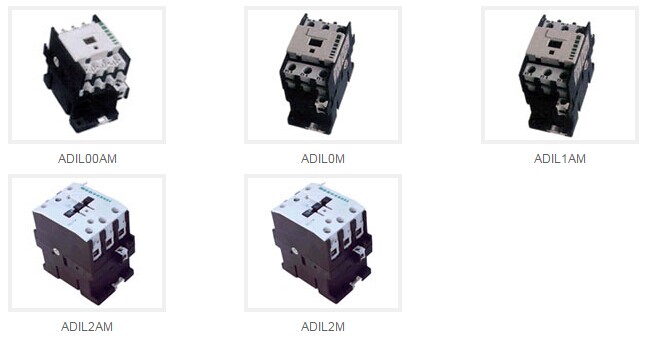

ADIL AC contactor
Product Detail:
Application
ADIL series AC contactor is suitable for 50Hz or 60Hz current up to 100A electric power system for remote switch on and off circuit.
Specification
| Model | Thermal current (A) | Rated operting curret (A) | Power of controllable motor (KW) | No. of aux. contact | Electrical life (times) | Mechanical life (times) | |||
| ADIL00M | 20 | 9 | 5 | 4 | 4 | 3 | AC3 1x 106 | AC3 10 x 106 | |
| ADIL00M-10 | 20 | 9 | 5 | 4 | 4 | 4 | |||
| ADIL00M-01 | 20 | 9 | 5 | 4 | 4 | 3 | 1 | ||
| ADIL00AM | 20 | 12 | 7 | 5.5 | 5.5 | 3 | |||
| ADIL00AM-10 | 20 | 12 | 7 | 5.5 | 5.5 | 4 | |||
| ADIL00AM-01 | 20 | 12 | 7 | 5.5 | 5.5 | 3 | 1 | ||
| ADIL0M | 35 | 18 | 9 | 7.5 | 7.5 | 3 | 2 | ||
| ADIL0AM | 35 | 25 | 9 | 11 | 7.5 | 3 | |||
| ADIL1M | 55 | 32 | 12 | 15 | 11 | 3 | |||
| ADIL01AM | 55 | 40 | 17 | 18.5 | 15 | 3 | |||
| ADIL2AM | 90 | 50 | 26 | 22 | 22 | 3 | |||
| ADIL02AM | 90 | 63 | 35 | 22 | 22 | 3 | |||
| ADIL3M | 100 | 72 | 40 | 30 | 30 | 3 | |||
