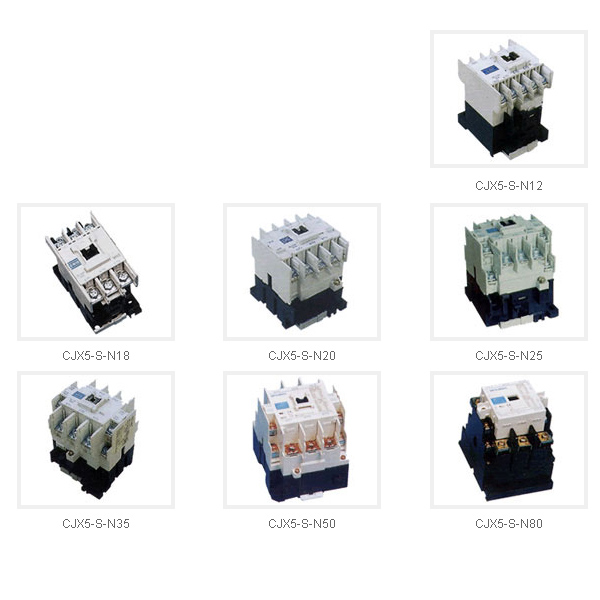

CJX5-S-N AC contactor
Product Detail:
Application
CJX5-S-N series AC contactors are suitable for AC 50Hz, rated voltage up to 660V, mainly used as putting through long distance, breaking circuit and frequently starting control AC motor. It can also be used for counter-connection breaking of squirrel-cage motor in the case of reducing working current.
Specification
| Model | Capacity of 3 phase squirlel-cage motor AC-3 | Rated heating current 1th(A) | |||||||
| Rated power (KW) | Rated operating current(A) | ||||||||
| 220-240V | 380-440V | 550V | 660V | 220-240V | 380-440V | 550V | 660V | ||
| CJX5-S-N10 | 2.5 | 4.0 | 4.0 | 4.0 | 11 | 9 | 7 | 5 | 20 |
| CJX5-S-N11 | 3.5 | 5.5 | 5.5 | 5.5 | 13 | 12 | 9 | 7 | 20 |
| CJX5-S-N12 | 3.5 | 5.5 | 5.5 | 5.5 | 13 | 12 | 9 | 7 | 20 |
| CJX5-S-N20 | 5.5 | 11 | 11 | 7.5 | 22 | 22 | 17 | 9 | 32 |
| CJX5-S-N21 | 5.5 | 11 | 11 | 7.5 | 22 | 22 | 17 | 9 | 32 |
| CJX5-S-N25 | 8.5 | 14 | 14 | 14 | 30 | 30 | 12 | 12 | 40 |
| CJX5-S-N35 | 12 | 20 | 20 | 20 | 40 | 40 | 17 | 17 | 40 |
