Yueqing long road electric co.,Ltd

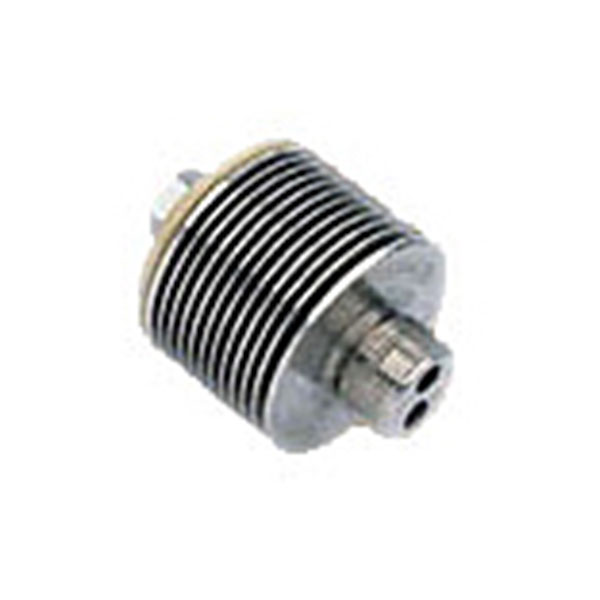

Rotation thyristors
Product Detail:
Comparison:
It can be worked under greater centrifugal force
Typicla applications
Special used for rotation excitation dynamotor (electromotor)
Technical parameter:
| Model | IF(AV) | VTM | VRRM/VDRM | IRRM/IRRM | ITSM | Tjm | lGT/lGT | lH | dv/dt | RJC | bear acentric acceleation | |
| Normal | super speed | |||||||||||
| A | V | V | mA | kA | ℃ | mA/V | mA | V/μs | ℃/w | g | g | |
| KX40 | 40 | ≤1.6 | 50-1600 | ≤10 | 1 | 125 | 150/2.5 | ≤50 | ≥100 | 0.46 | 1250 | 2500 (4 hours) |
| KX100 | 100 | ≤1.6 | 50-2000 | ≤20 | 2.2 | 125 | 150/3.0 | ≤100 | ≥100 | 0.25 | 1250 | 2500 (4 hours) |
| KX200 | 200 | ≤2.0 | 50-2000 | ≤30 | 2.5 | 125 | 250/3.0 | ≤200 | ≥100 | 0.11 | 1250 | 2500 (4 hours) |
| KX300 | 300 | ≤1.85 | 75-3000 | ≤30 | 3.8 | 125 | 250/3.5 | ≤200 | ≥100 | 0.073 | 1250 | 2500 (4 hours) |
| KX500 | 500 | ≤2.7 | 75-3000 | ≤50 | 6.3 | 125 | 300/3.5 | ≤200 | ≥100 | 0.073 | 5000 | 5500 (4 hours) |

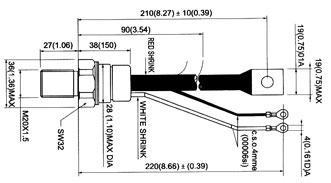

Outline Dimension:
