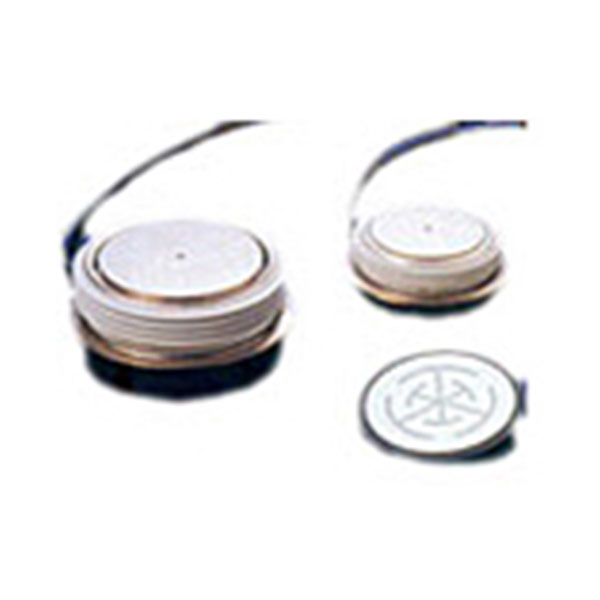

Fast switching thyristors

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: Dimension: Technical parameter:Type _**=VRRM/100IF(AV@ TC=100℃VRRMIFSM@ TVJM10msVFM@ IFM TC=TVJMTVJMRTHJCRTHCHtq @ TVJMF±10%PKGAVkAAV℃K/WK/WμskNKK6300-**300800-12004.16002.351250.080.02205KP6KK6300-**3001200-140046002.451250.080.02305KP6KK6300-**3001600-20003.86002.601250.080.024005KP6KK8800-** …

Detail

Messages

Product Detail:

Dimension:

Technical parameter:

Type _**=VRRM/100	IF(AV@ TC=100℃	VRRM	IFSM@ TVJM&10ms	VFM@ IFM& TC=TVJM		TVJM	RTHJC	RTHCH	tq @ TVJM	F±10%	PKG
Type _**=VRRM/100	A	V	kA	A	V	℃	K/W	K/W	μs	kN	PKG
KK6300-**	300	800-1200	4.1	600	2.35	125	0.08	0.02	20	5	KP6
KK6300-**	300	1200-1400	4	600	2.45	125	0.08	0.02	30	5	KP6
KK6300-**	300	1600-2000	3.8	600	2.60	125	0.08	0.02	400	5	KP6
KK8800-**	800	800-1200	10	1500	2.08	125	0.037	0.008	25	15	KP8
KK8700-**	700	1200-1400	9	1500	2.45	125	0.037	0.008	30	15	KP8
KK8600-**	600	1600-2000	8	1500	2.80	125	0.037	0.008	40	15	KP8
KK91300-**	1300	800-1200	17	2000	1.85	125	0.023	0.005	25	22	KP9
KK91200-**	1200	1200-1400	16	2000	2.00	125	0.023	0.005	35	22	KP9
KK91200-**	1200	1600-2000	15	2000	2.15	125	0.023	0.005	50	22	KP9
KKA1900-**	1900	800-1200	24	3000	2.00	125	0.015	0.004	25	45	KPA
KKA1800-**	1800	1200-1400	23	3000	2.15	125	0.015	0.004	35	45	KPA
KKA1700-**	1700	1600-2000	21	3000	2.35	125	0.015	0.004	50	45	KPA
KKA1600-**	1600	2200-2500	21	3000	2.50	125	0.015	0.004	60	45	KPA
KKX2800-**	2600	800-1200	33	4000	1.80	125	0.012	0.003	25	56	KPX
KKX2700-**	2500	1200-1400	32	4000	1.90	125	0.012	0.003	35	56	KPX
KKX2700-**	2400	1600-2000	31	4000	2.00	125	0.012	0.003	50	56	KPX
KKX2600-**	2100	2200-2500	27	4000	2.40	125	0.012	0.003	65	56	KPX
KKX2400-**	2000	2600-2800	26	4000	2.65	125	0.012	0.003	100	56	KPX
KKB3000-**	2700	2600-3000	35	6000	2.95	125	0.008	0.003	120	70	KPB
KKC3000-**	3500	2600-3000	45	6000	2.80	125	0.006	0.002	120	90	KPC
KKC3200-**	3200	3500-4500	41	4000	2.65	125	0.006	0.002	200	90	KPC
