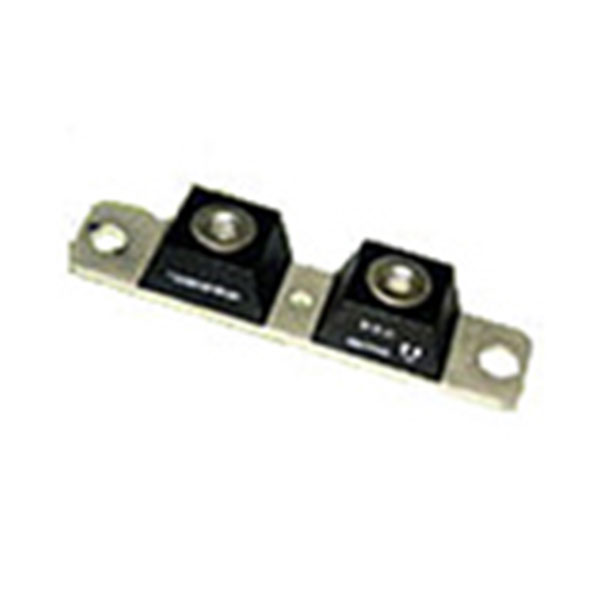

Fast Recovery Diode(FRD) Modules

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: Technical parameter:TypeVRRMIF(AV)IRRMIFRMIFSMVFMTRRRth(j-c)TjOutlinesV125oC25oC20kHzTC95oCPer Leg 10msPer Leg25oC@100A25oCoC/WoCAμAAAVnsMUR20020200200TC=130oC10001502008001.0500.45~55~+175Fig31MUR20040200400 TC=130oC50202008001.3750.45~55~+175Fig31Circuit configurationMURMUR(A)

Detail

Messages

Product Detail:

Technical parameter:

Type	VRRM	I F(AV)	IRRM		IFRM	IFSM	VFM	TRR	Rth(j-c)	Tj	Outlines
	V		125oC	25oC	20kHzTC95oC	Per Leg 10ms	Per Leg25oC@100A	25oC	oC/W	oC
	V	A	μA		A	A	V	ns	oC/W	oC
MUR20020	200	200TC=130oC	1000	150	200	800	1.0	50	0.45	~55~+175	Fig31
MUR20040	200	400 TC=130oC	50	20	200	800	1.3	75	0.45	~55~+175	Fig31
