Product Detail:

1.YHWS1 Lightning Arrester

Type	System Rated Voltage (KV)	Lightning Arrester Rated voltage (KV)	Lightning Arrester Continuous Operating Voltage (KV)	DC 1mA Voltage (KV)	Nominal Discharge Current Wire (KV)	Square Wage Impulse Current Endurance (A)
YHWS-3.8/17	3	3.8	2.0	7.5	17	100
YHWS-7.3/30	6	7.6	4.0	15	30	100
YHWS-10/30	6	10	4.0	15	30	100
YHWS-12.7/50	10	12.7	6.6	25	50	100
YHWS-17/45	10	17	12.7	25	50	100

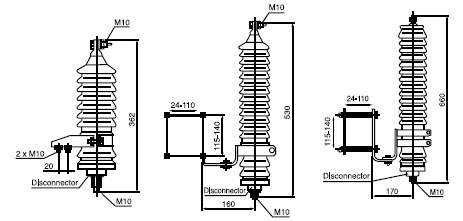

2.Dimension

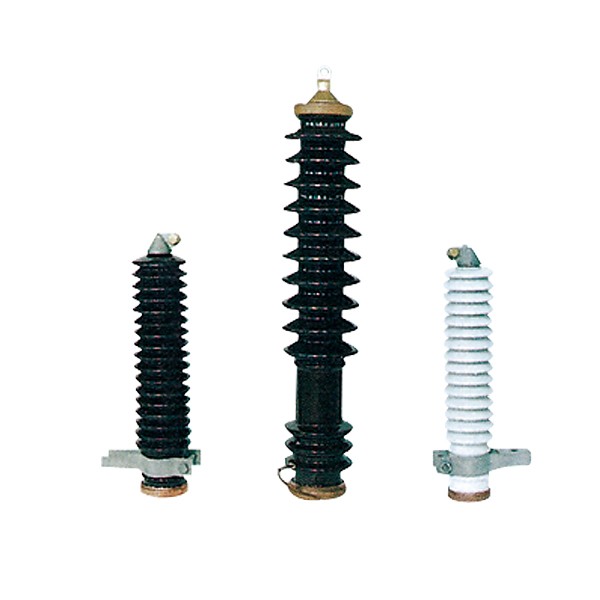

3.Y5C-Y10C Lightning Arrester

Type	Rated Voltage (KV)	Power Frequency Discharge Current ≤KV	Impulse Discharge Voltage ≥KV	8/20 µ S Residual Voltage for Lightning Impulse ≤KV	Square Wave Through Discharge (A)	8/20 µ S Impulse Max Current 20 Times (KV)	Front-of-Wave Impulse Max Sparkover Voltage (KV)
Y5C-15	15	26	47	57	100	40	47
Y10C-15	15	26	43	51	150	65	43
Y5C-18	18	33	48	57	100	40	66
Y10C-18	18	33	48	60	200	65	70
Y5C-24	24	40	66	80	100	40	88
Y10C-24	24	40	66	80	200	65	92
Y5C-33	33	56	100	123	100	40	100
Y10C-33	33	56	93	113	200	65	93
Y5C-36	36	61	106	133	100	40	106
Y10C-36	36	61	99	120	200	65	99
