Wholly-scope High-voltage limit-current fuse for protection

Category:- High Voltage Fuse

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: This product can be used in indoor system of 50Hz and rated voltage 12KV.lt can break any problem current between the fuse melting current and the rated break current.it has the current limit fuse merit of good break;it has also the non-current limit fuse of small current protection.An overall break protection can be achieved.


Detail

Messages

Product Detail:

1111.jpg   1112.jpg   1113.jpg

Product Introduction :

This product can be used in indoor system of 50Hz and rated voltage 12KV.lt can break any problem current between the fuse melting current and the rated break current.it has the current limit fuse merit of good break;it has also the non-current limit fuse of small current protection.An overall break protection can be achieved.

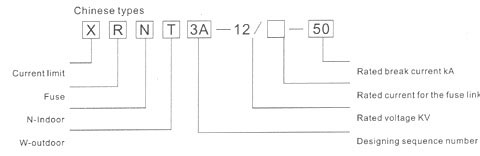

Type :



Basic parameters :

Rated voltage(KV) Rated current of the fuse(A) Rated current of the fuse limit(A) Rated break current kA
12,24,36 63 10,16,20,25,31.5,40,50,63 63

Selecting principles :

Initialvoltage of the transformer 12KV
Transformer capacity KVA> Ruse Rated current (A) Fuse type
<125 10 XRNT3A-12 FFLAJ
160 16
200-250 20
315 25
400 31.5
500 40
630 50
800 63

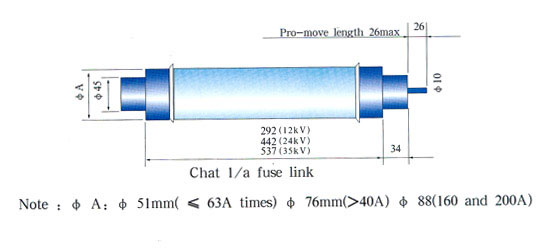

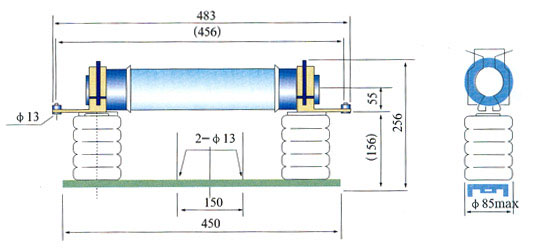

Lnstallation Dimensios:



Technique Data

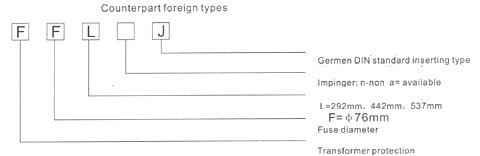

Type Un(KV) In(A) D(mm) International feference model
XRNT 12 10 76 FFLAj
16
20
31.5
40
50
63
80 88
100

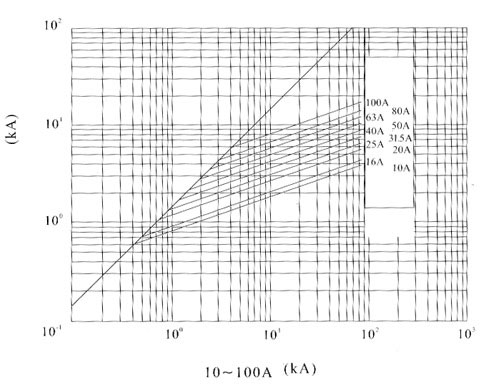

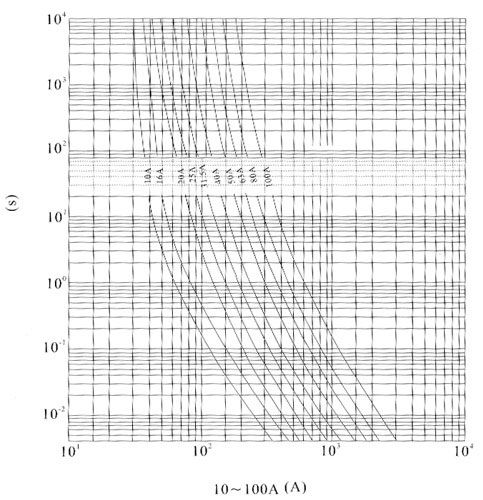

Property Cure Diagram :
