Oil-immersed type voltage transformer High voltage limit current fuse
Product Detail:
Product Introduction :
The product can be used in system with AC 50Hz and rated voltage of 10KV. Used together with other protection electric facilities (such as loading switches).it can protects electric transformers and other electric facillitles against overloading or circuit break. It is mainly used in American style box transformers as backup protection

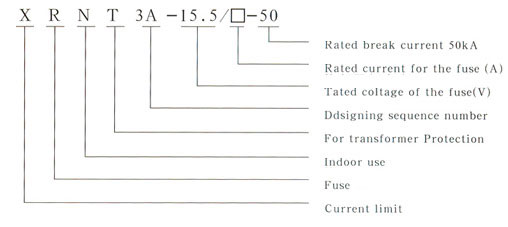

Type :
Basic parameters :
| Type | Rated voltage | Max voltage | Rated current of the fuse link(A) | Rated circuit break Break curren | Use environment |
| XRNT3A-15.5 | 15.5KV | 17.2KV | 40,50,63,80,100, 125,180,200. | 50KA | In transformer oll |

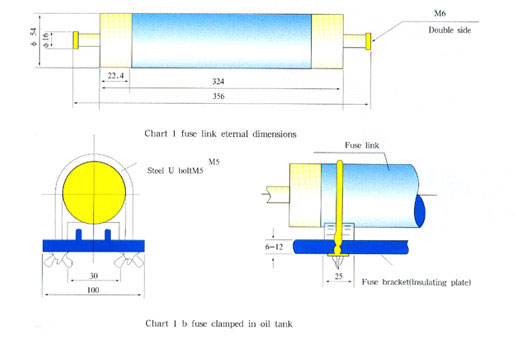

Lnstallation Dimensios:
Major technical characteristics
1 .When used in the required conditions,the fuse can break any problem current betwenn the
minimum break current to the rated break current 50kA

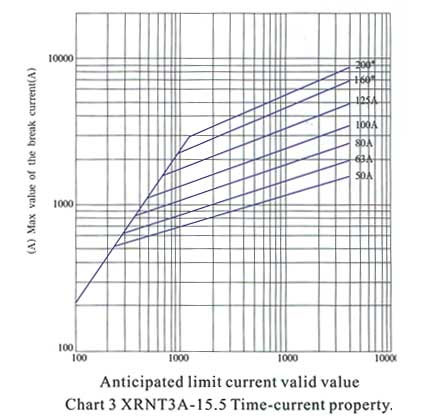

2.See Chart 3 for the fuse time -current propertycurve.
3.See Chart 2 for limit current property.
Property Cure Diagram :
