Oil-immersed type voltage transformer High voltage limi
Product Detail:
Oil-immersed type voltage transformer High voltage limit-current fuse for protection
Product Introduction :
The product can be used in system with AC 50Hz and rated voltage of 10KV. Used together with other protection electric facilities (such as loading switches).it can protects electric transformers and other electric facillitles against overloading or circuit break. It is mainly used in American style box transformers as backup protection

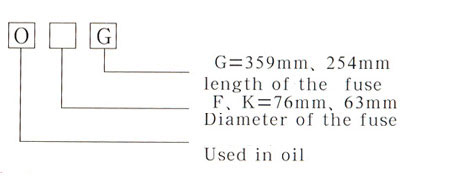

Type :
Basic parameters :
| Type | Rated voitage(KV) | Max working voltage (KV) | Fuse ratedcurrent(A) | Rated current of the fuse link (A) |
| OFG | 10 | 12 | 125 | 63,80,100,125 |
| OKG | 200 | 160,200 |
Use and characteristics,Ordering must know

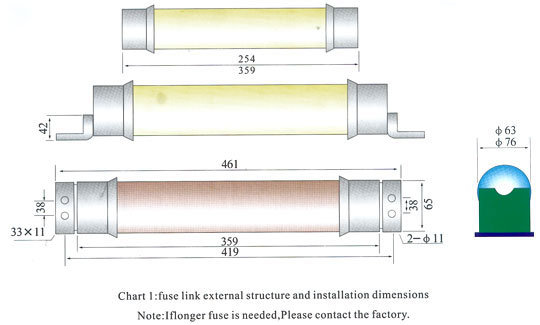

click here Lnstallation Dimensios:
Major technical characteristics
1.The fuse link can break any problem current between the minimum
break current (2.5-5)In to
rated break current 50kA.

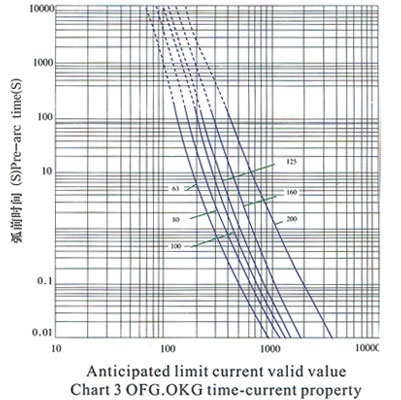

2.See Chart 3 for the fuse time -current property.The upper section above the minimum break
current is broken line.

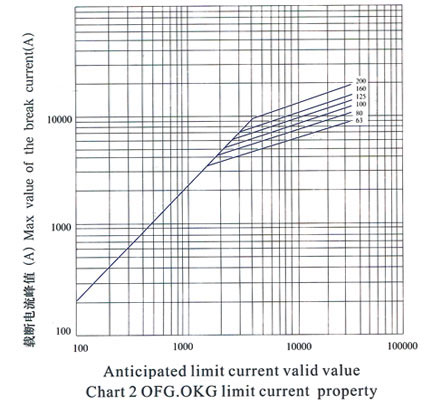

3.See Chart 2 for limit current property.
Property Cure Diagram :
