1.Application

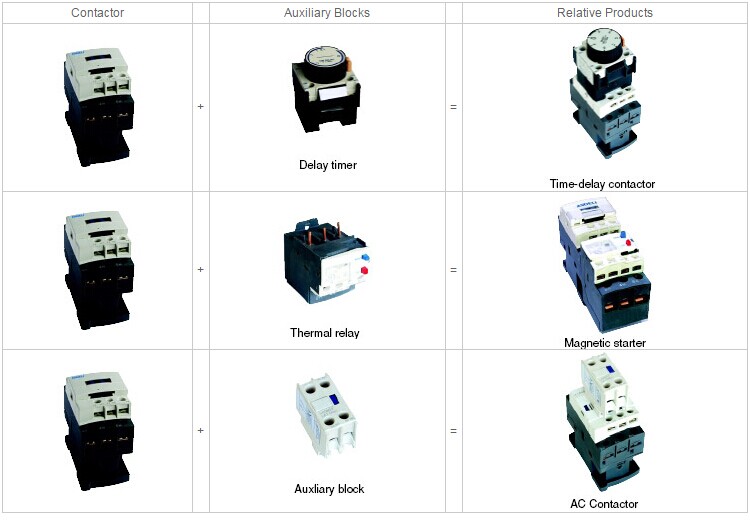

CJX2N series AC contactor is suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~150A under AC-3 duty.It is mainly used for making/breakingelectric circuits at a long distance & for frequent starting/stopping & controlling AC Motors.It isused in combination with thermal relay to compose a magnetic motor starter. The products com-ply with IEC60947-4-1 standard.

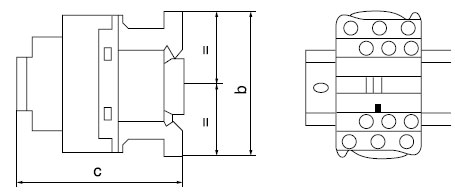

2.Specification

Type		CJX2N-09	CJX2N-12	CJX2N-18	CJX2N-25	CJX2N-32	CJX2N-38	CJX2N-40
Rated working current Ie (A) AC-3 Ue≤440V		9	12	18	25	32	38	40
Rated hear current Ith (A)		25	25	32	40	50	50	60
Rated insulation voltage Ui (V)		690	690	690	690	690	690	1000
Rated operating voltage Ue (V) Max		690	690	690	690	690	690	1000
Rated operational power in AC-3 Pe (KW)	220/230V	2.2	3	4	5.5	7.5	9	11
	380/400V	4	5.5	7.5	11	15	18.5	18.5
	415/440V	4	5.5	9	11	15	18.5	22
	500V	5.5	7.5	10	15	18.5	18.5	22
	660/690V	5.5	7.5	10	15	18.5	18.5	30
Rated operational power inAC-4 Pe (KW)	220/230V	1.5	1.5	2.2	3	4	4	4
	380/400V	2.2	3.7	4	5.5	7.5	7.5	9
	415/440V	2.2	3	3.7	5.5	7.5	7.5	9/11
	500V	3	4	5.5	7.5	9	9	11
	660/690V	4	5.5	7.5	10	11	11	15
Frequency of operation (I/h)		1200	1200	1200	1200	1000	1000	1000
Electrical endurance (x10⁴)	AC-3	100	100	100	100	80	80	80
Electrical endurance (x10⁴)	AC-4	20	20	20	20	20	20	15
Mechanical endurance (x10⁶)		15	15	15	15	15	15	6
Operating voltage range of coil	Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us
Power consumption of coil (VA)	Atracting	7	7	7	7	7	7	20
Power consumption of coil (VA)	Starting	70	70	70	70	70	70	200
Rated insulation voltage ofauxitiary contacts (V)	690	690	690	690	690	690	690	690
Conventional thermal current ofauxitiary contacts (A)	10	10	10	10	10	10	10	10
Auxitiary contacts speecification	AC-15:360VA DC-13:33W

Type		CJX2N-50	CJX2N-65	CJX2N-80	CJX2N-95	CJX2N-115	CJX2N-150
Rated working current Ie (A) AC-3 Ue≤440V		50	65	80	95	115	150
Rated hear current Ith (A)		80	80	125	125	200	200
Rated insulation voltage Ui (V)		1000	1000	1000	1000	1000	1000
Rated operating voltage Ue (V) Max		1000	1000	1000	1000	1000	1000
Rated operational power in AC-3 Pe (KW)	220/230V	15	18.5	22	25	30	40
	380/400V	22	30	37	45	55	75
	415/440V	25/30	37	45	45	59	80
	500V	30	37	55	55	75	90
	660/690V	33	37	45	45	80	100
Rated operational power inAC-4 Pe (KW)	220/230V	5.5	7.5	7.5	9	9	11
	380/400V	11	11	15	15	18.5	22
	415/440V	11	11/15	15	15	18.5	22
	500V	15	18.5	22	22	30	37
	660/690V	18.5	22	25	25	30	45
Frequency of operation (I/h)		1000	1000	750	750	750	750
Electrical endurance (x10⁴)	AC-3	60	60	60	60	60	60
Electrical endurance (x10⁴)	AC-4	15	15	15	15	15	15
Mechanical endurance (x10⁶)		6	6	4	4	4	4
Operating voltage range of coil	Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us
Power consumption of coil (VA)	Atracting	20	20	20	20	22	22
Power consumption of coil (VA)	Starting	200	200	200	200	300	300
Rated insulation voltage ofauxitiary contacts (V)	690	690	690	690	690	690	690
Conventional thermal current ofauxitiary contacts (A)	10	10	10	10	10	10	10
Auxitiary contacts speecification	AC-15:360VA DC-13:33W
