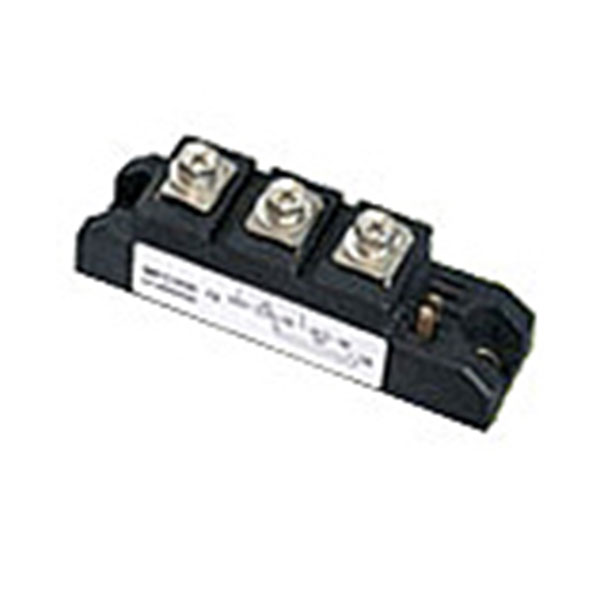

Thyristor-Diode Modules
  • Thyristor-Diode Modules

Thyristor-Diode Modules

Category：Rectifier

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: Technical parameter: Type VDRMVRRM IT(AV)IF(AV) ITSMIFSM dv/dt …


Detail

Messages

Product Detail:

Technical parameter:

Type VDRMVRRM I T(AV) I F(AV) ITSMIFSM dv/dt di/dt IDRMIRRM IGT VGT IH VTM/VFM VTO rT Rjc Tjm Viso Outlines
V TC= 85 oC KA V/us A/us mA mA V mA V /A V mΩ oC/W oC V
A
MFx26 600-1800 26 0.55 800 50 8 100 2.5 100 1.69/80 0.85 9.68 0.950 125 2500 Fig01
MFx40 600-1800 40 1.00 800 50 8 100 2.5 100 1.60/120 0.85 5.57 0.650 125 2500
MFx55 600-1800 55 1.25 800 50 8 100 2.5 100 1.50/170 0.85 3.47 0.530 125 2500
MFx70 600-1800 70 1.60 800 50 10 100 2.5 100 1.48/210 0.80 2.64 0.410 125 2500
MFx90 600-1800 90 2.00 800 100 10 100 2.5 100 1.70/270 0.80 3.01 0.280 125 2500 Fig02         Fig03
MFx110 600-1800 110 2.40 800 100 12 100 2.5 100 1.69/330 0.80 2.29 0.250 125 2500
MFx135 600-1800 135 2.00 800 100 20 100 2.5 100 1.75/410 0.80 2.85 0.350 125 2500 Fig04         Fig05
MFx160 600-1800 160 5.40 800 100 20 150 2.5 100 170/480 0.80 1.69 0.170 125 2500
MFx182 600-1800 182 5.80 800 100 25 150 2.5 100 1.62/550 0.80 1.26 0.160 125 2500
MFx200 600-1800 200 7.20 800 100 30 180 2.5 100 1.65/600 0.80 1.27 0.140 125 2500 Fig06
MFx250 600-1800 250 8.50 800 100 30 180 2.5 100 1.57/750 0.80 0.85 0.120 125 2500
MFx300 600-1800 300 9.30 800 100 40 180 2.5 100 1.58/900 0.80 0.72 0.100 125 2500 Fig07
MFx350 600-1800 350 11.0 800 100 40 180 2.5 100 1.45/1050 0.80 0.36 0.090 125 2500
MFx400 600-1800 400 12.0 800 100 40 200 3.0 100 1.52/1200 0.80 0.49 0.080 125 2500 Fig10
MFx500 600-1800 500 16.0 800 100 50 200 3.0 100 1.44/1500 0.80 0.34 0.065 125 2500
MFx800 600-1800 800 16.0 800 100 40 200 3.0 100 1.86/2400 0.80 0.42 0.054 125 2500 Fig12
MFx1000 600-1800 1000 20.0 800 100 60 200 3.0 100 1.96/3000 0.80 0.34 0.053 125 2500 Fig14
MFx1200 600-1800 1200 24.0 800 100 70 200 3.0 100 1.98/3000 0.80 0.29 0.051 125 2500
Type VDRMVRRM I T(AV) I F(AV) ITSMIFSM dv/dt di/dt IDRMIRRM IGT VGT IH VTM/VFM VTO rT Rjc Tjm Viso Outlines
V TC= 80 oC KA V/us A/us mA mA V mA V /A V mΩ oC/W oC V
A
MFx55 1900-3600 55 1.15 800 100 10 100 3.0 100 1.94/270 0.90 3.33 0.640 125 3600 Fig01
MFx70 1900-3600 70 160 800 100 12 100 3.0 100 1.94/270 0.90 3.33 0.450 125 3600
MFx90 1900-3600 90 2.00 800 100 15 100 3.0 100 1.94/270 0.90 3.33 0.280 125 3600 Fig02 Fig03
MFx110 1900-3600 110 2.40 800 100 20 100 3.0 100 1.90/330 0.90 2.61 0.250 125 3600
MFx135 1900-3600 135 3.80 800 100 20 150 3.0 100 1.96/405 0.90 2.26 0.200 125 3600 Fig04
       Fig05
MFx160 1900-3600 160 5.40 800 100 25 150 3.0 100 190/480 0.90 1.79 0.170 125 3600
MFx182 1900-3600 182 5.80 800 100 30 150 3.0 100 1.80/546 0.90 1.40 0.160 125 3600 Fig06
MFx200 1900-3600 200 7.20 800 100 30 180 2.5 100 1.90/600 0.90 1.43 0.140 125 3600
MFx250 1900-3600 250 8.50 800 100 50 180 2.5 100 1.73/750 0.90 0.93 0.120 125 3600 Fig07
Type VDRMVRRM I T(AV) I F(AV) ITSMIFSM dv/dt di/dt IDRMIRRM IGT VGT IH VTM/VFM VTO rT Rjc Tjm Viso Outlines
V TC= 55 oC KA V/us A/us mA mA V mA V /A V mΩ oC/W oC V
A
MFx400* 600-1800 400 8.50 800 100 40 200 3.0 150 1.90/1200 0.80 0.80 0.110 125 2500 Fig08
MFx500* 600-1800 500 11.0 800 100 40 200 3.0 150 1.90/1500 0.80 0.64 0.087 125 2500 Fig09
MFx600* 600-1800 600 13.0 800 100 40 200 3.0 150 1.90/1800 0.80 0.53 0.073 125 2500
MFx800* 600-1800 800 16.0 800 100 40 200 3.0 150 1.95/2400 0.80 0.42 0.054 125 2500 Fig11
MFx1000* 600-1800 800 20.0 800 100 50 200 3.0 150 1.95/3000 0.80 0.33 0.052 125 2500 Fig13

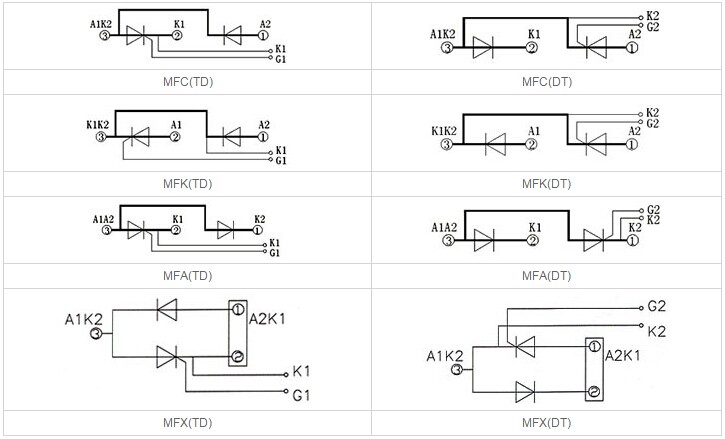

Circuit configuration
