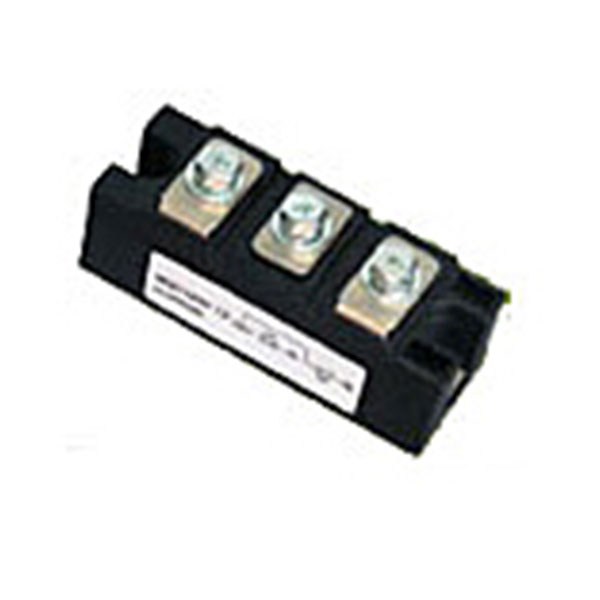

Fast Rectifier Diode Modules
Product Detail:
Technical parameter:
| Type | VRRM | I F(AV) | I FSM | I 2t | I RRM | V FM/ IFM | VFO | r F | Rjc | Tjm | V iso | Dimension |
| V | TC=100 oC | KA | A2 sx104 | mA | V/A | V | mΩ | oC /W | oC | V | ||
| A | ||||||||||||
| MZx75 | 600-1600 | 75 | 2.20 | 2.45 | 30 | 2.00/225 | 0.80 | 4.25 | 0.310 | 140 | 2500 | Fig04 Fig05 |
| MZx150 | 600-1600 | 150 | 4.30 | 9.42 | 40 | 1.60/450 | 0.80 | 1.38 | 0.210 | 140 | 2500 | Fig6 |
| MZx200 | 600-1600 | 200 | 6.00 | 18.4 | 40 | 1.58/600 | 0.85 | 0.92 | 0.150 | 140 | 2500 | |
| MZx300 | 600-1600 | 300 | 8.30 | 35.1 | 40 | 1.55/900 | 0.85 | 0.58 | 0.100 | 140 | 2500 | Fig10 |
| Type | VRRM | I F(AV) | I FSM | I 2t | I RRM | V FM/ IFM | VFO | r F | Rjc | Tjm | V iso | Dimension |
| V | TC=60oC | KA | A2 sx104 | mA | V/A | V | mΩ | oC /W | oC | V | ||
| A | ||||||||||||
| *MZx300 | 600-1600 | 300 | 6.00 | 18.4 | 40 | 2.05/900 | 0.85 | 1.06 | 0.160 | 140 | 2500 | Fig09 |
| *MZx400 | 600-1600 | 400 | 8.30 | 35.1 | 70 | 1.90/1200 | 0.85 | 0.68 | 0.130 | 140 | 2500 | Fig11 |
* water-cooling
Circuit configuration
MZC
