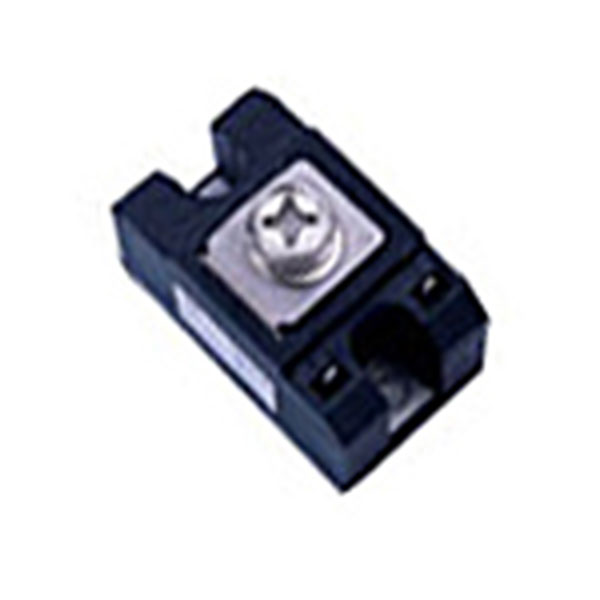

Single-Three Phases Rectification Bridges Modules
Product Detail:
Product Introduction:MDQ
| Type | I0 @TC | VRRM | VTM@ITM | IRRM | IF(AV) | IF(RMS) | IFSM | Rjc | Tjm | Viso | Outline | ||
| A | oC | V | V | A | mA | A | A | A×103 | oC/W | oC | VA.C | ||
| MT×100 | 50 | 100 | 600-2000 | 1.55 | 75 | 8 | 25 | 60 | 0.75 | 0.55 | 150 | 2500 | S |
| MT×150 | 75 | 100 | 600-2000 | 1.47 | 110 | 8 | 38 | 70 | 1.00 | 0.32 | 150 | 2500 | Q |
| MT×200 | 100 | 100 | 600-2000 | 1.53 | 150 | 10 | 50 | 86 | 1.50 | 0.24 | 150 | 2500 | Q |
| MT×250 | 150 | 100 | 600-2000 | 1.47 | 230 | 10 | 75 | 106 | 2.50 | 0.15 | 150 | 2500 | Q |
| water-cooling | |||||||||||||
MDS
| Type | I0 @TC | VRRM | VTM@ITM | IRRM | IF(AV) | IF(RMS) | IFSM | Rjc | Tjm | Viso | Outline | ||
| A | oC | V | V | A | mA | A | A | A×10 3 | oC/W | oC | VA.C | ||
| MDS50 | 50 | 100 | 600-2000 | 1.55 | 50 | 8 | 17 | 39 | 0.75 | 0.55 | 150 | 2500 | I/ K |
| MDS75 | 75 | 100 | 600-2000 | 1.47 | 75 | 8 | 25 | 47 | 1.00 | 0.32 | 150 | 2500 | I/ K |
| MDS100 | 100 | 100 | 600-2000 | 1.53 | 100 | 10 | 33 | 51 | 1.50 | 0.24 | 150 | 2500 | I/ K |
| MDS150 | 150 | 100 | 600-2000 | 1.50 | 150 | 10 | 50 | 71 | 2.50 | 0.15 | 150 | 2500 | L/ M |
Features
The chip and base-board are electric-insulation, 2500v AC voltage
Packing with international standard
The welding structure, super temperature properties and power-cycling capability
The installation,use as well as maintenance are simple
Small volume, light weight
The highest work temperature could achieve 150oC
Forward-direction voltage are decreasing
Typical-application
The DC power of instrument equipments
The PWM changes the importation of the machine of commutates the power supply
Direct current electrical engineering magnetoelectricity source
The importation of the switch power supply commutates
It is soft to start the electric capacity refreshes
The electricity drags along to move with lend support to the electric current
The electric current refreshes the direct current power supply
Instruction
VRSM=VRRM+200V
Exception VFM¡¢Viso, other parameters inside form all are the tested £¦#118alue below Tjm
I2t=I2FSMtw/2;tw:the tw inside equation is sine semi wave current base-width, in the case of 50Hz,I2t(10ms)=0.005I2FSM(A2S)
If used in the case of frequency below 60Hz,IFSM(8.3ms)=1.066IFSM(10ms)
I2t(8.3ms)=0.943I2t(10ms)
