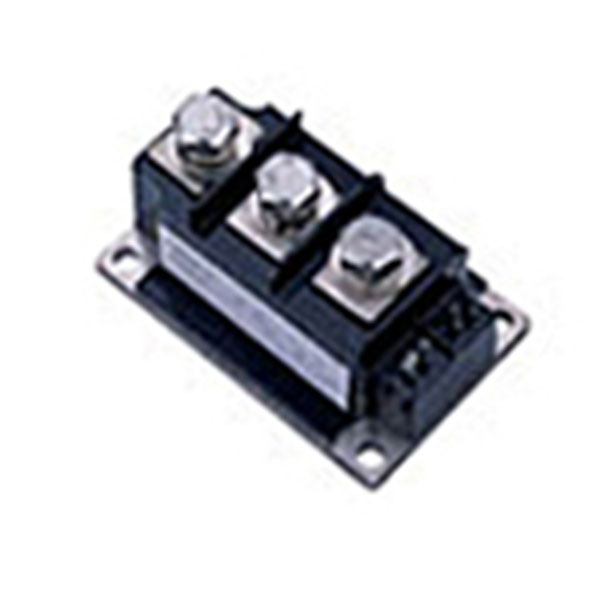

MTG,MTY Power Modules
Product Detail:
Product Introduction:MTG,MTY
| Type | IT(AV) | VDRM VRRM | VTM@ITM | IDRM IRRM | IGT | VGT | IH | dv/dt | di/dt | ITSM | Rjc | Tjm | Outline | |
| A | V | V | A | mA | mA | V | mA | V/μs | A/μs | A¡Á103 | oC/W | oC | ||
| MT-100 | 100 | 500-2500 | 1.67 | 300 | 12 | 100 | 2.5 | 100 | 800 | 100 | 3.20 | 0.250 | 125 | S |
| MT-150 | 150 | 500-2500 | 1.67 | 450 | 12 | 100 | 2.5 | 100 | 800 | 100 | 5.10 | 0.160 | 125 | Q |
| MT-200 | 200 | 500-2500 | 1.62 | 600 | 20 | 150 | 2.5 | 100 | 800 | 100 | 6.50 | 0.130 | 125 | Q |
| MT-250 | 250 | 500-2500 | 1.65 | 750 | 20 | 150 | 2.5 | 100 | 800 | 100 | 8.50 | 0.100 | 125 | Q |
| MT-300 | 300 | 500-2500 | 1.58 | 900 | 25 | 150 | 2.5 | 100 | 800 | 100 | 9.60 | 0.080 | 125 | Q |
| water-cooling | ||||||||||||||
MDG,MDY
| Type | IT(AV) | VRRM | VFM @IFM | IRRM | IF(RMS) | IFSM | Rjc | Tjm | Outline | |
| A | V | V | A | mA | A | A¡Á103 | oC/W | oC | ||
| MT-100 | 100 | 500-2500 | 1.57 | 300 | 12 | 157 | 3.90 | 0.380 | 150 | S |
| MT-150 | 150 | 500-2500 | 1.57 | 450 | 12 | 236 | 5.80 | 0.240 | 150 | Q |
| MT-200 | 200 | 500-2500 | 1.50 | 600 | 20 | 314 | 8.00 | 0.200 | 150 | Q |
| MT-250 | 250 | 500-2500 | 1.53 | 750 | 20 | 393 | 9.80 | 0.150 | 150 | Q |
| MT-300 | 300 | 500-2500 | 1.50 | 900 | 25 | 471 | 11.50 | 0.130 | 150 | Q |
Features
Non-insulation, the base-board is public electrode
Packing with international standard
Completely press-connection structure, with super temperature properties and power-cycling capability
The highest work temperature can achieve 140oC
High-surge current
Low forward-direction voltage being decreasing
Typical-application
The power of electric-welder
Kinds of DC power
Frequency-transformer
Instruction
VDSM/VRSM=VDRM/VRRM+200V
Only if proved separately, theIGT¡¢VGT¡¢IH¡¢VTM¡¢Viso are the tested £¦#118alue below 25oC, other parameters inside form all are the tested alue below Tjm
I2t=I2FSMtw/2;tw:the tw inside equation is sine semi wave current base-width, in the case of 50Hz,I2t(10ms)=0.005I2FSM(A2S)
If used in the case of frequency below 60Hz,IFSM(8.3ms)=1.066IFSM(10ms)
I2t(8.3ms)=0.943I2t(10ms)
