Low Br and Linear Magnetization Characteristics Nanocrystalline Cores
Product Detail:
For IGBT inverter electric welder and pulsating DC fault current voltage independent RCCBS which low Br is needed to get high¡÷B(Bs-Br),the nanocrystalline cores are made with transverse-field-annealing processes.

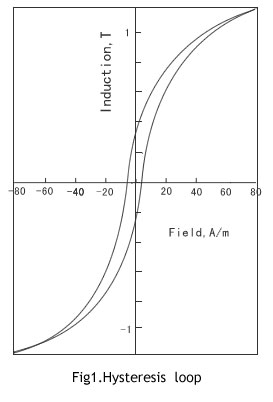

(1).Comparision of nanocrystalline cores with other soft magnetic cores.

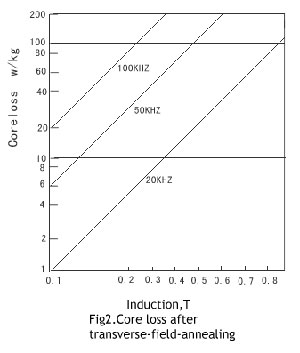

| Properties | Nanocrystalline core | Ferrite core |
| Saturate induction(T) | 1.25 | 0.5 |
| Remanace(T) | 0.15 | 0.2 |
| Permeability(Gs/Oe) | 20000 | 2000 |
| CoercivityHc(Oe) | 0.005 | 0.2 |
| Curie temperature(℃) | 570 | <200 |
| Core loss(20kHz,0.2T)(w/kg) | ≤4 | 7.5 |
| Core loss(20kHz,0.5T)(w/kg) | ≤40 | --- |
| Core loss(50kHz,0.3T)(w/kg) | ≤60 | --- |
