Split core current transformers MES series:
The MES series of current transformer have beautiful outline and Convenient for mounting in many ways. The most current transform need the special mounting and the MES series used the mounting of DIN typing With a lot of times. The protective cover for the terminal block used the switching device with Safety and quick.
MES guide rail type CT :
| Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient: | 5A-3000A 5A, 1A VDE0414, BS7626, IEC44-1 0.72/3KV 50-60Hz 2.5VA, 5VA, 10VA, 15VA 0.5, 1.0 Ith=60×Ih FS<5 |
Dimension of case [mm]:
| Model | A | B | C | D | E | F | G |
| MES-62/30 | 81 | 47 | 30 | 35 | 71 | 31 | 62 |
| MES-62/40 | 81 | 47 | 30 | 35 | 71 | 41 | 62 |
| MES-30 | 88 | 52 | 30 | 41 | 77 | 31 | 80 |
| MES-40 | 88 | 52 | 30 | 41 | 77 | 41 | 80 |
| MES-60 | 117 | 57 | 50 | 184 | 77 | 61 | 101 |
| MES-100 | 115 | 53 | 86 | 38 | 74 | 101 | 145 |
Technical date & Sepecification
| Type | Ratedcurrent(A) | Rated power (VA) | |
| Class:0.5 | Class:1 | ||
| MES-62/30 | 30/5 40/550/560/575/5100/5150/5200/5 | - ----1.522.5 | 1 111.51.52.535 |
| MES-62/40 | 60/5 75/5100/5150/5200/5250/5300/5 | - -11.52.535 | 1 122.5557.5 |
| MES-30 | 30/5 50/560/575/5100/5150/5200/5 | - ---1.52.55 | 1 11.51.52.557.5 |
| MES-40 | 100/5 150/5200/5250/5300/5400/5500/5 | 1.5 2.555101010 | 2.5 555151515 |
| MES-60 | 600/5 800/51000/51200/5 | 15 151515 | 20 202020 |
| MES-100 | 1000/5 1200/51500/51600/52000/52500/53000/5 | 15 151515151515 | 30 303030303030 |

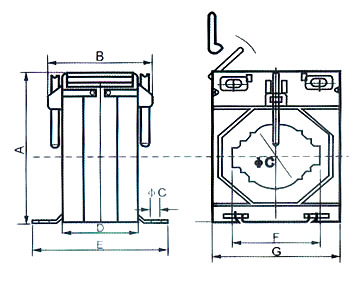

Outline Drawing:
