Yueqing long road electric co.,Ltd
ZET Current Transformers

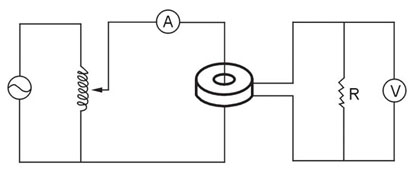

Product Detail:
Tapping Type Of Z.C.T:
| Standard Model | Standard Size.mm | Rated Current of Application | |||||||
| A | B | C | D | E | F | G | H | ||
| ZCT SZ-5 | 18.0min | 32.2max | 8.7max | - | 80±3 | 6±1 | - | 95.3:3 | 100A |
| ZCT SZ-6 | 26.5min | 40.1max | 10.4max | - | 70±3 | 6±1 | - | 85.3:3 | 150A |
| ZCT SZ-8 | 35.5min | 55.0max | 15.2max | - | 80±3 | 6±1 | - | 95.6:3 | 225A |
| ZCT SZ-42 | 48.5min | 75.4max | 14.0max | - | 100±3 | 6±1 | - | 120.3:3 | 400A |
| ZCT SZ-52 | 16.3min | 28.5max | 7.5max | 16max | 65±3 | 3±1 | - | 80.3:3 | 100A |
| ZCT SZ-9 | 32.5min | 45max | 13.5max | 23.8max | 60±3 | 3±1 | - | 75.3:3 | 2250A |
| ZCT SZ-11 | 72min | 102max | 15max | - | - | 3±1 | - | 170.3:3 | 800A-1200A |
Sketch and standard sizes of th Z.C.T:
| No | Name | Materials |
| 1 | Core | Nickel |
| 2 | Core case | Polypropylene resin |
| 3 | Winding | 2-UEW f0.08, 1-UEWf0.1 |
| 4 | Lead wires | Irradiated Polyethylene or PVC insulated wire |
| 5 | Outer case | Polypropylene resin or Nylon 66 |
| 6 | Shields | Magnetic iron |
| 7 | Filling | Polybutadiene resin of epoxy (DC-172) |
