D363 D364 Current Transformers
Product Detail:
D363 D364 Series:
| Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient: | 3×40A-600A 5A, 1A BS7626, IEC44-1, IEC185 0.72/3KV 50-60Hz 1.25VA-5VA 0.5, 1.0, 3.0 Ith=60×Ih FS<5 |
Technical data:
| Model | Primary/secondary | BusbarHoleDimension | RatedBurden(VA) | class | RatedVoltage | RatedFrequency |
| D363 | 3×40/5A-500/5A | 3×27mm | 1.25-5VA | 1/3 | 0.72 | 50/60Hz |
| D364 | 3×300/5A-600/5A | 3×27mm | 2.5-5VA | 1/3 | 0.72 | 50/60Hz |
Dimension of case (mm)：
| Model | A | B | C | D | E | F | G |
| D363 | 185 | 84 | 27 | 75 | 87 | 61 | 41 |
| D364 | 185 | 84 | 37 | 37 | 87 | 61 | 41 |

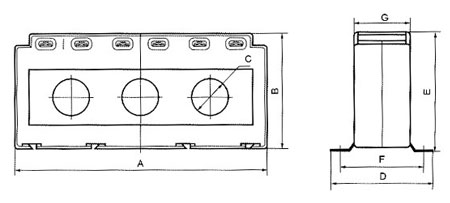

Outline Drawing:
