Product Detail:
Apllication
Residual current circuit breakers DZL1 are used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA. Residual current circuit breakers can be used in TN-S, TT and IT network systems or with other words in all systems where neutral and protective conductor are separated(VDE 0100 Teil 410).
Specification
Model | DZL1-2P | DZL1-4P |
Rated voltage | 230V | 230/400V |
Rated current | 25A,40A, 63A | |
Rated residual current | 0.03A, 0.1A, 0.3A, 0.5A | |
Back-up fuse | 80A gG | |
IP code | IP40 | |
Isolating class | B | |
Cross-section of connecting lead | 1-25mm2 | |
Type | A type, AC type | |
Standards | IEC 61008, EN 61008 |

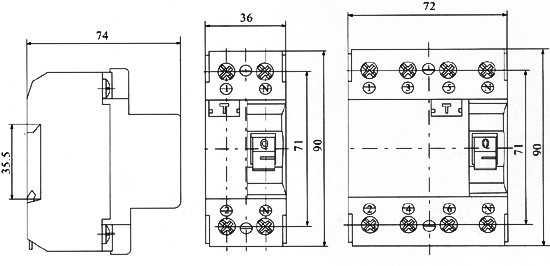

Overall and mounting dimensions fig.(unit:mm)
