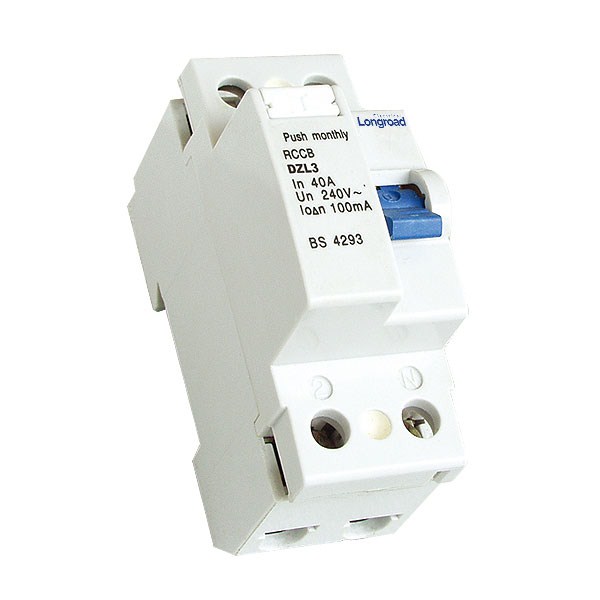

DZL3 Residual Current Circuit Breaker
Product Detail:
1.Application
DZL3 residual current circuit breaker is in conformity with the standards of IEC61008. It can cut offthe fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it issuitable to avoid the shock hazard and fire caused by earth leakage. It can be used in circuits up tosingle phase 240V,three phases 415V, 50 or 60Hz.
DZL3N residual current circuit breaker is in conformity with the standards of IEC61008. It can cutoff the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus itis suitable to avoid the shock hazard and fire caused by earth leakage. It can be used in circuits up tosingle phase 240V,threephase 415V, 50 or 60Hz.
2.Main Technical Parameter
| Type | DZL3 | |
| Pole | 2P | 4P |
| Rated current In(A) | 10, 16, 25,32,40,63 | 10, 16, 25,32,40,63 |
| Rated residual operating current I∆n(mA) | 10,30,100,300 | 30,100,300 |
| Rated residual non-operating current I∆no(mA) | 0.5I∆n | |
| Voltage Un(V) | 240(220), 415(380) | |
| Tripping time | <0.1s | |
| Ambient temperature | -5oC~+40oC | |
| Vibration resistance | Minimum 5g 30min, 0~8Hz | |
