Product Detail:
Application scope:
AML19-63 Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault. Standard IEC61008
Main technical parameters:
Type | AML19-63 |
Number of poles | 2P,4P |
Rated Current(In) | 25,32,40,63A |
Rated residual operating current(I△n) | 10,30,100,300,500mA |
Rated Voltage(Un) | AC 230(240) / 400(415)V |
Residual operating current scope | 0.5I△n~I△n |
Residual current off-time | =0.3s |
Type | A AC |
Ultimate short-circuit breaking capacity(Icn) | 3000A |
Endurance | =4000 |
Terminal protection | IP20 |

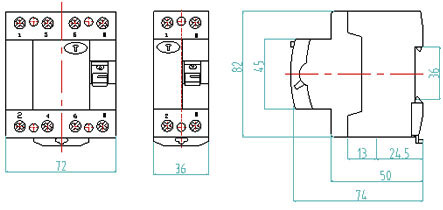

Overall and mounting dimensioned chart :
