DZ47-63 Series Miniature Circuit Breaker

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: DZ47-63 is applicable to a line of AC 50Hz/60Hz, 230V in single pole, 400V in double, three,four poles for protecting overload and short circuit, and rated current up to 63A. It can also beused for infrequent line conversion under the normal condition.The breaker is applicable tolighting distribution system in industrial enterprise, commercially district, high-rise building anddwelling house. It conforms with the standards of IEC60898.

Detail

Messages

Product Detail:

1. Application

DZ47-63 is applicable to a line of AC 50Hz/60Hz, 230V in single pole, 400V in double, three,four poles for protecting overload and short circuit, and rated current up to 63A. It can also beused for infrequent line conversion under the normal condition.The breaker is applicable tolighting distribution system in industrial enterprise, commercially district, high-rise building anddwelling house. It conforms with the standards of IEC60898.

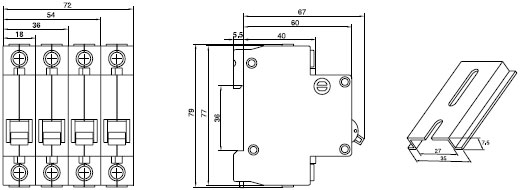

2. Main Technical Parameter

Type	DZ47-63
Pole	1P			2P,3P,4P
Rated current (A)	6,10,16,20,25,32,40,50,63
Rated voltage (V)	230			400
Ambient temperature	-5oC~+40oC
Type of instantaneous release	C	D	C	D
Rated short circuit breaking capacity Icn(kA)	1-32A:6 50-63A:4	4	1-32A:6 50-63A:4	4

3. Applicable conducting wire

Rated current(A)	Norminal cross section of wire mm2
1-6A	1
10A	1.5
16,20A	2.5
25A	4
32A	6
40,50A	10
63A	16

4. The over-current protection property

Ambient Temperature	Initial Status	Test Current	Expected Result	Expected Result	Note
30±2oC	Cold position	1.13In	t≥1h	Non-release	-
	Carried out immediatelyafter previous test	1.45In	t < 1h	Release	-
	Cold position	2.55In	1s < t< 60s(In≥32A)	Release	Current smoothly rises tospecified value within 5s
	Cold position	2.55In	1s < t < 120s(In>32A)	Release	Current smoothly rises tospecified value within 5s
-5~+40oC	Cold position	3In	t≥0.1s	Non-release	Type B
	Cold position	5In	t < 0.1s	Release	Type B
	Cold position	5In	t≥0.1s	Non-release	Type C
	Cold position	10In	t < 0.1s	Release	Type C
	Cold position	10In	t≥0.1s	Non-release	Type D
	Cold position	20In	t < 0.1s	Release	Type D
