Product Detail:

1. Compliant standards

IEC/EN 60898-1

2. Compliant certification

CE, CB, SAA

3. Major function

Overload protection, short circuit protection, positive isolation

4. Technical parameters

Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A;

Rated voltage: 220V~/230V~/240V ~ (1P, 1P+N), 380V~/400V~/415V ~ (2 ~ 4P, 3P+N);

Frequency: 50/60Hz;

Electromagnetic release type: B, C;

Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P;

Mechanical life: 20000 cycles;

Electrical life: 10000 cycles;

Rated short-circuit breaking capacity(Icn): 6000A;

Short-circuit breaking capacity (Ics): 6000A;

Rated impulse withstand voltage (Uimp): 4kV;

Accessories: Shunt Release, Under-voltage release, Over-voltage release, Alarm contact;

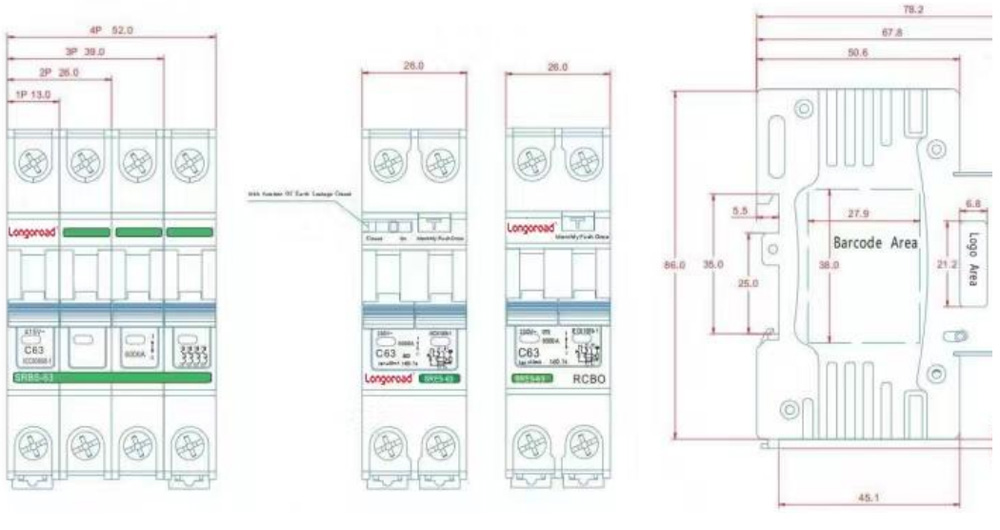

5. Dimensions and installation sizes
