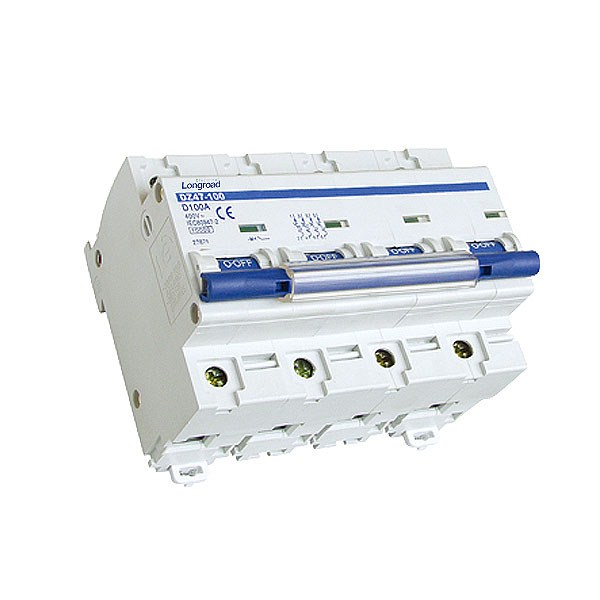

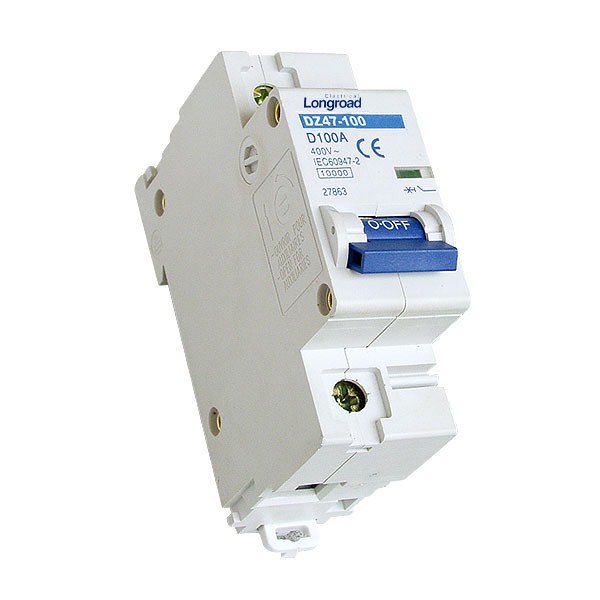

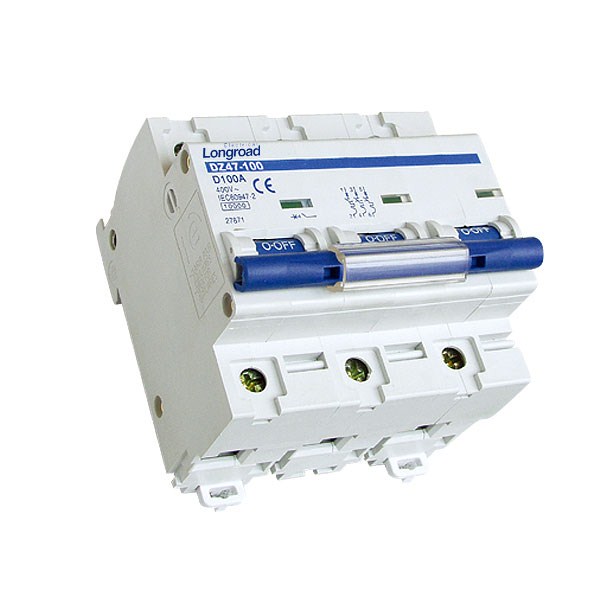

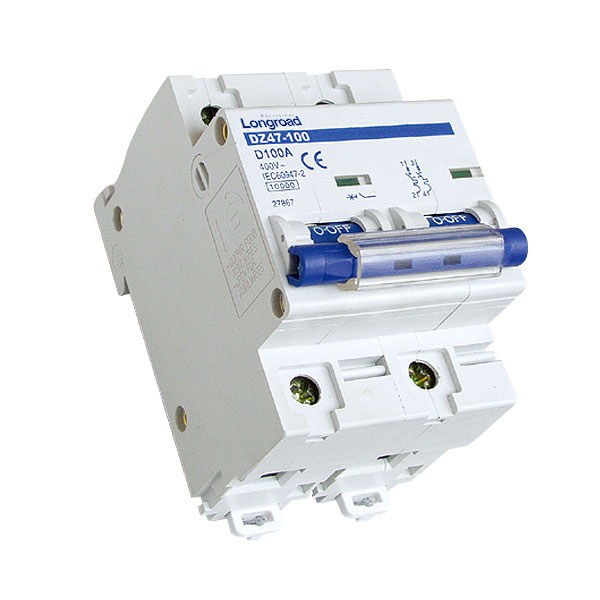

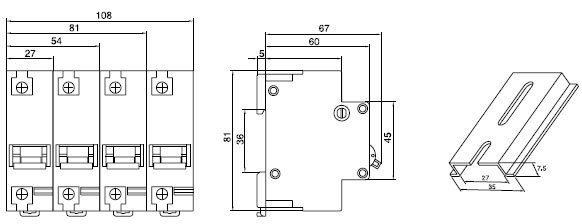

DZ47-100 Miniature Circuit Breaker
Product Detail:
1. Application
DZ47-100 is such features as delicate appearance, light weight, excellent and reliableperformance, high breaking capacity, rapid tripping and mounted by rail. Its enclosure and com-ponents adopts high fire-retarding and shock-resistance plastic of long durability. It mainly servesfor protecting the circuits of AC 50Hz, 230V of single pole, 400V of two poles or three or fourpoles from overload or short-circuit, and also for unfrequent making and breaking electricalapparatus and lighting circuit.It conforms with the standards of IEC60947-2.
2. Main Technical Parameter
Type | DZ47-100 | |
Pole | 1P | 2P,3P,4P |
Rated current (A) | 63,80,100 | |
Rated voltage (V) | 230 | 400 |
Ambient temperature | -5oC~+40oC | |
Type of instantaneous release | C,D | |
Rated short circuit breaking capacity Icn(kA) | 6 | |
3. The over-current protection property
Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | NOte |
40±2oC | Cold position | 1.05In(In≤63A) | t≤1h | Non-release | - |
Cold position | 1.05In (In[63A) | t≤2h | Non-release | - | |
Carried out immedi-ately after previous test | 1.30In(In≤63A) | t < 1h | Release | Current smoothlyrises to specified value within 5s | |
1.30In (In>63A) | t < 2h | Release | |||
-5~+40oC | Cold position | 8.00In | t≤0.2s | Non-release | - |
Cold position | 12.00In | t< 0.2s | Non-release | - |
4. Applicable conducting wire
Rated current(A) | Nominal cross section of wire mm2 |
63A | 16 |
80A | 25 |
100A | 35 |
