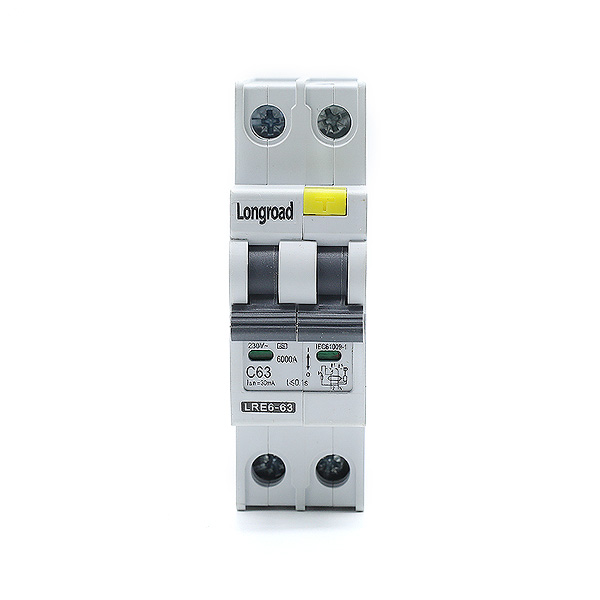

Product Detail:

1. Compliant standards

IEC/EN 61009-1

2. Major function

Short circuit protection, overload protection, leakage protection.

3. Technical parameters

Execution standard: IEC61009-1(RCBO)

Rated Current: 25A, 32A, 40A, 50A, 63A

Rated residual current: 10mA. 30mA. 100mA

The rated voltage: AC220/230V/240V

Rated frequency: 50/60Hz

Short circuit trip characteristic: B .C

Leakage trip characteristics: A Type, AC Type

Rated short circuit breaking capacity: Ics=Icn=6KA

The number of 1P+N

Rated insulation voltage: 1000V

Rated impulse voltage: 4000V

Power frequency withstand voltage: 2kV/1min

Wiring ability ≤16mm² Electrical life: 6000 times

Mechanical life: 10000times

Protection grade: IP20

The environment temperature: -25℃——+55℃

DIN rail can be installed: YES

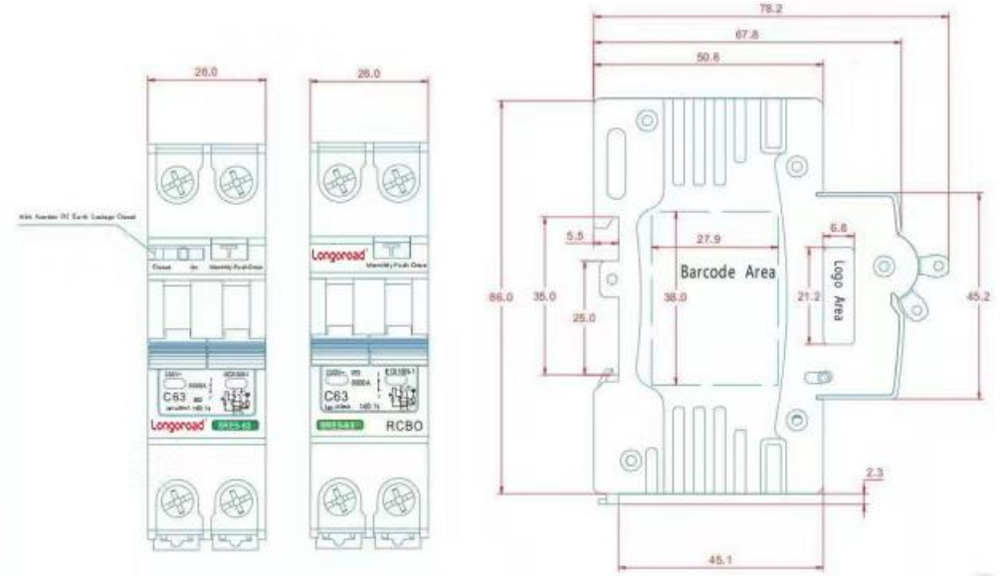

4.Dimensions and installation sizes
