Phase control thyristors

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: 1. FeatureIT(AV)=5-5000AV DRM/V RRM=100-5000VHermetic metal case with ceramic insulatorHermetic glass-metal sealMetal case with ceramic insulatorConform to national standard GB/T8950.2-1999In accordance with IEC international electrical commoittee standard2. Typical ApplicationDC motor controlsContr …

Detail

Messages

Product Detail:

1. Feature
IT(AV)=5-5000A
V DRM/V RRM=100-5000V
Hermetic metal case with ceramic insulator
Hermetic glass-metal seal
Metal case with ceramic insulator
Conform to national standard GB/T8950.2-1999
In accordance with IEC international electrical commoittee standard
2. Typical Application
DC motor controls
Controlled DC power supplies
AC switch and thermal control
Synchronous motor esxitation
3. Characteristic

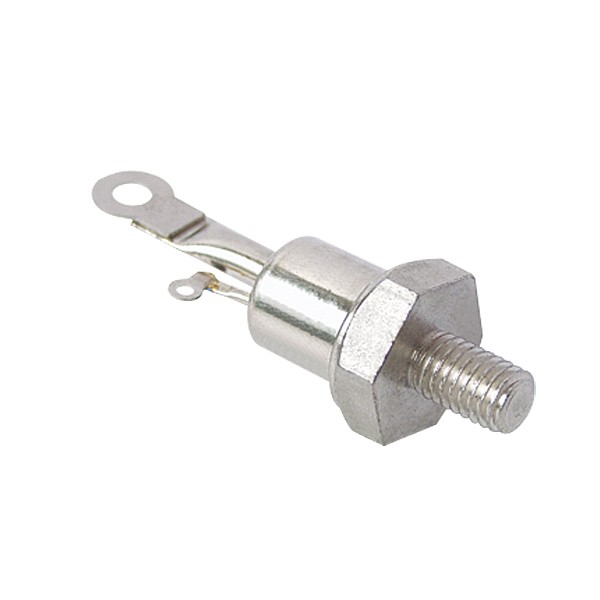

Stud-model

Type No

IT(AV)A

ITSM A

VTM V

VDRM V

IDRM mA

IGT mA

VGT V

IH mA

dv/dt V/µs

di/dt A/µs

TjoC

Rjc oC/w

Weightg

Outine No

KP5A

≤2.2

100~2000

≤8.0

5~45

≤2.5

5~45

≥50

-40~+125

≤3.0

KP10A

≤2.5

KP20A

≤1.0

B3D1

KP30A

≤10

5~50

≥100

≤0.5

112

KP50A

≤2.4

5~150

≤0.14

142

KP100A

100

160

5~200

≤0.11

207

KP200A

200

320

≤2.6

≥200

≤0.11

327

KP300A

300

480

≤30

≤0.08

472

KP500A

500

800

≤0.04

927

Disc types

Type No	IT(AV)A	ITSM A	VTM V	VDRM V	IDRM mA	IGT mA	VGT V	IH mA	dv/dt V/µs	di/dt A/µs	TjoC	Rjc oC/w	Weightg	Outine No
KP100A	100	160	≤2.6	100~5000	≤15	15~200	≤2.5	15~200	≥200	≥100	-40~+125	0.11	75	F1
KP200A	200	320										0.11	90/205	F2E2
KP300A	300	480										0.08	105/290	F3E3
KP500A	500	800				15~250		15~250				0.04	205/375	F4E4
KP800A	800	1280			≤30	15~250	≤3.0	15~250				0.026	230/430	F5E5
KP1000A	1000	1600				15~300		15~300				0.020	300/540	F6E6
KP1500A	1500	2400				15~300		15~300				0.020	655	E7
KP2000A	2000	3200				15~400		15~400				0.012	760	E8
KP2500A	2500	4000			≤45		≤3.5					0.010	1215	E9
KP3000A	3000	4800										0.010	1265	E9E10E11
KP3500A	3500	5600										0.010	1295	E9E10E11
KP4000A	4000	6400										0.010	1325	E9E10E11
KP5000A	5000	8000										0.010	1385	E9E10E11
