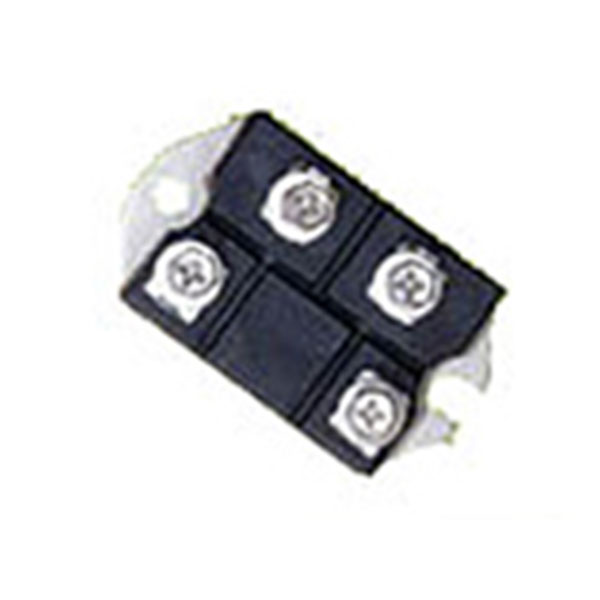

Single phase Rectifier Bridge Modules(Diode) MDQ
Product Detail:
Technical parameter:
| Type | VRRM | I o | I FSM | I 2t | IRRM | VFM/IFM | VFO | rF | Rjc | Tjm | Viso | Outlines |
| V | TC= 100 °C | KA | A2sx104 | mA | V /A | V | mΩ | °C/W | °C | V | ||
| A | ||||||||||||
| MDQ50 | 600-1600 | 50 | 0.75 | 0.28 | 8 | 1.55/75 | 0.80 | 9.0 | 0.550 | 150 | 2500 | Fig21 Fig23 Fig25 |
| MDQ75 | 600-1600 | 75 | 1.00 | 0.51 | 8 | 1.47/110 | 0.80 | 7.0 | 0.320 | 150 | 2500 | |
| MDQ100 | 600-1600 | 100 | 1.50 | 1.14 | 10 | 1.53/150 | 0.80 | 4.5 | 0.240 | 150 | 2500 | Fig27 Fig29 |
| MDQ150 | 600-1600 | 150 | 2.50 | 3.18 | 10 | 1.47/230 | 0.80 | 3.8 | 0.150 | 150 | 2500 |
Circuit configuration
MDQ
