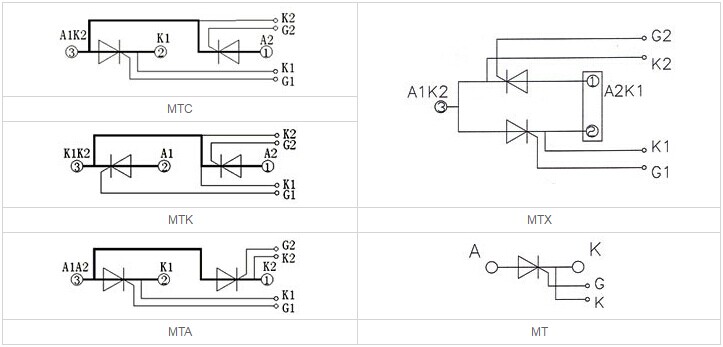

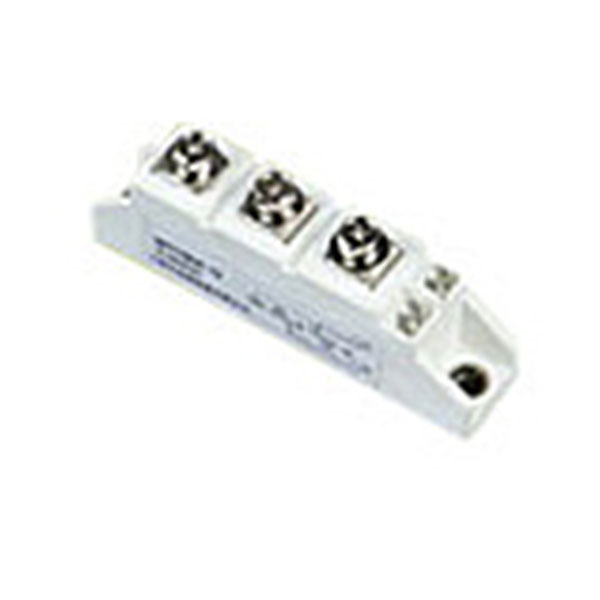

Thyristor Modules(MTC,MTY,MTA,MTK,MT)|Yueqing long road electric co.,Ltd

Thyristor Modules(MTC,MTY,MTA,MTK,MT)

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: Technical parameter:TypeVDRMVRRMIT(AV)ITSMdv/dtdi/dtIDRMIRRMIGTVGTIHVTM/ITMVTOrTRjcTjmVisoOutlinesVTC= 85oCKAV/usA/usmAmAVmAV /AVmΩoC/WoCVAMTx26600-1800260.558005081002.51001.69/800.859.680.9501252500MTx40600-1800401.008005081002.51001.60/1200.855.570.6501252500MTx55600-1800551.258005081002.51001.50 …

Detail

Messages

Product Detail:

Technical parameter:

Type	VDRMVRRM	I T(AV)	I TSM	dv/dt	di/dt	IDRMIRRM	IGT	VGT	IH	VTM/ITM	VTO	rT	Rjc	Tjm	Viso	Outlines
	V	TC= 85 oC	KA	V/us	A/us	mA	mA	V	mA	V /A	V	mΩ	oC/W	oC	V
	V	A	KA	V/us	A/us	mA	mA	V	mA	V /A	V	mΩ	oC/W	oC	V
MTx26	600-1800	26	0.55	800	50	8	100	2.5	100	1.69/80	0.85	9.68	0.950	125	2500
MTx40	600-1800	40	1.00	800	50	8	100	2.5	100	1.60/120	0.85	5.57	0.650	125	2500
MTx55	600-1800	55	1.25	800	50	8	100	2.5	100	1.50/170	0.85	3.47	0.530	125	2500
MTx70	600-1800	70	1.60	800	50	10	100	2.5	100	1.48/210	0.80	2.64	0.410	125	2500
MTx90	600-1800	90	2.00	800	100	10	100	2.5	100	1.70/270	0.80	3.01	0.280	125	2500	Fig02 Fig03
MTx110	600-1800	110	2.40	800	100	12	100	2.5	100	1.69/330	0.80	2.29	0.250	125	2500	Fig02 Fig03
MTx135	600-1800	135	3.80	800	100	20	150	2.5	100	1.75/410	0.80	2.12	0.200	125	2500	Fig04 Fig05
MTx160	600-1800	160	5.40	800	100	20	150	2.5	100	170/480	0.80	1.69	0.170	125	2500
MTx182	600-1800	182	5.80	800	100	25	150	2.5	100	1.62/550	0.80	1.26	0.160	125	2500
MTx200	600-1800	200	7.20	800	100	30	180	2.5	100	1.65/600	0.80	1.27	0.140	125	2500	Fig06
MTx250	600-1800	250	8.50	800	100	30	180	2.5	100	1.57/750	0.80	0.85	0.120	125	2500	Fig06
MTx300	600-1800	300	9.30	800	100	40	180	2.5	100	1.58/900	0.80	0.72	0.120	125	2500	Fig07
MTx350	600-1800	350	11.0	800	100	40	180	2.5	100	1.45/1050	0.80	0.50	0.090	125	2500	Fig07
MTx400	600-1800	400	12.0	800	100	40	200	3.0	100	1.52/1200	0.80	0.49	0.080	125	2500	Fig10
MTx500	600-1800	500	16.0	800	100	40	200	3.0	100	1.44/1500	0.80	0.34	0.065	125	2500	Fig10
MTx800	600-1800	800	16.0	800	100	40	200	3.0	100	1.86/2400	0.80	0.42	0.054	125	2500	Fig12
MTx1000	600-1800	1000	20.0	800	100	60	200	3.0	100	1.96/3000	0.80	0.34	0.053	125	2500	Fig14
MTx1200	600-1800	1200	24.0	800	100	70	200	3.0	100	1.98/3000	0.80	0.29	0.051	125	2500	Fig14

Type	VDRMVRRM	I T(AV)	I TSM	dv/dt	di/dt	IDRMIRRM	IGT	VGT	IH	VTM/ITM	VTO	rT	Rjc	Tjm	Viso	Outlines
	V	TC= 80oC	KA	V/us	A/us	mA	mA	V	mA	V /A	V	mΩ	oC/W	oC	V
	V	A	KA	V/us	A/us	mA	mA	V	mA	V /A	V	mΩ	oC/W	oC	V
MTx55	1900-3000	55	1.15	800	100	10	150	3.0	100	1.96/120	0.90	5.85	0.640	125	3600	Fig01
MTx70	1900-3000	70	1.60	800	100	12	150	3.0	100	1.93/210	0.90	4.64	0.450	125	3600	Fig01
MTx90	1900-3000	90	2.00	800	100	15	150	3.0	100	1.92/270	0.90	3.26	0.280	125	3600	Fig02 Fig03
MTx110	1900-3000	110	2.40	800	100	20	150	3.0	100	1.90/330	0.90	2.61	0.250	125	3600	Fig02 Fig03
MTx135	1900-3000	135	3.80	800	100	25	150	3.0	100	1.96/410	0.90	2.26	0.200	125	3600	Fig04 Fig05
MTx160	1900-3000	160	5.40	800	100	25	150	3.0	100	190/480	0.90	1.79	0.170	125	3600
MTx182	1900-3000	182	5.80	800	100	30	150	3.0	100	1.80/550	0.90	1.40	0.160	125	3600
MTx200	1900-3000	200	7.20	800	100	30	180	3.0	100	1.90/600	0.90	1.43	0.140	125	3600	Fig06
MTx250	1900-3000	250	8.50	800	100	30	180	3.0	100	1.73/750	0.90	0.93	0.120	125	3600	Fig06
MTx300	1900-3000	300	8.50	800	100	50	180	3.0	100	1.68/900	0.90	0.75	0.091	125	3600	Fig07

Type	VDRMVRRM	I T(AV)	I TSM	dv/dt	di/dt	IDRMIRRM	IGT	VGT	IH	VTM/ITM	VTO	rT	Rjc	Tjm	Viso	Outlines
	V	TC=55 oC	KA	V/us	A/us	mA	mA	V	mA	V /A	V	mΩ	oC/W	oC	V
	V	A	KA	V/us	A/us	mA	mA	V	mA	V /A	V	mΩ	oC/W	oC	V
MTx400 *	600-1800	400	8.50	800	100	40	200	3.0	100	1.90/1200	0.80	0.80	0.110	125	2500	Fig08
MTx500 *	600-1800	500	11.0	800	100	40	200	3.0	100	1.90/1500	0.80	0.64	0.087	125	2500	Fig09
MTx600 *	600-1800	600	13.0	800	100	40	200	3.0	100	1.90/1800	0.80	0.53	0.073	125	2500	Fig09
MTx800 *	600-1800	800	16.0	800	100	40	200	3.0	100	1.95/2400	0.80	0.42	0.054	125	2500	Fig11
MTx1000 *	600-1800	1000	20.0	800	100	50	200	3.0	100	1.95/3000	0.50	0.33	0.052	125	2500	Fig13
