CDS Current Transformers
Product Detail:
CDS servers:
Primary current:
Secondary approval:
Standard current:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:
-High fire retardancy and security
-Wide range of sizes to accommodate all the existing installations
Specification:
| Model | Primary / secondary (A) |
| CDS-40 | 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5A |
| CDS-60 | 300/5, 400/5, 500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5A |
| CDS-80 | 500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5A |
| CDS-100 | 600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5, 2000/5A, 2500/5, 3000/5A |
| CDS-120 | 1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5, 4000/5A, 5000/5 |
Dimension of case (mm):
| Model | Dimensions | Busbar hole dimension | Installation dimension | |||
| W | H | D | A | E | M | |
| DS-40 | 75 | 105 | 45 | 42 | 32 | 45 |
| DS-60 | 98 | 116 | 45 | 62 | 32 | 42 |
| DS-80 | 118 | 120 | 45 | 82 | 32 | 60 |
| DS-100 | 140 | 130 | 49 | 102 | 32 | 80 |
| DS-120 | 165 | 152 | 49 | 122 | 53 | 80 |

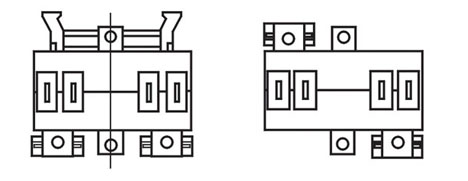

Outline Drawing:
