Product Introduction :
"KB,KU,KS"type fuses belong to "K"and"T"type fuse,it has,it has general type ,universal type and scrwe type available accrding to IEC-282 standard.The product drop-off type fuse of 11-36V grade.
Basic parameters :
Rated current(A) | Dimension(mm) | Quantity/carton | ||||
A | B | C | D | F | ||
1(to)25 | 12.5±0.2 | 19.0±0.2 | (Note)1 | 2.0 | 6.5 | 500 |
30(to)40 | 12.5±0.2 | 19.0±0.2 | (Note)1 | 3.0 | 8.0 | 500 |
50(to)100 | 19.0±0.3 | (Not applicable) | (Note)1 | 5.0 | 10.0 | 250 |
140(to)200 | 19.0±0.3 | (Not applicable) | (Note)1 | 7.0 | 12.0 | 150 |

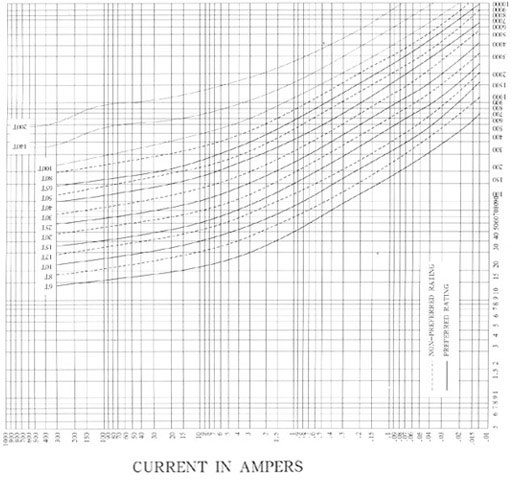

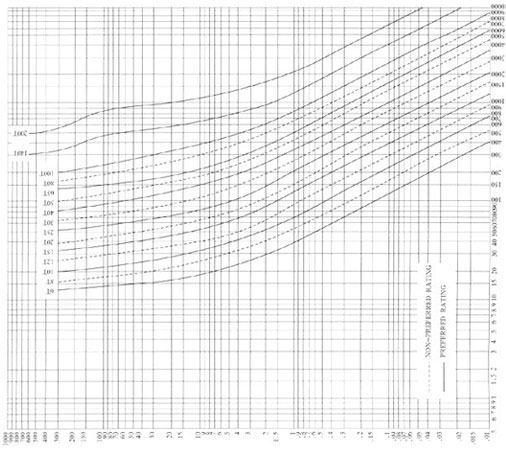

Property Cure Diagram :

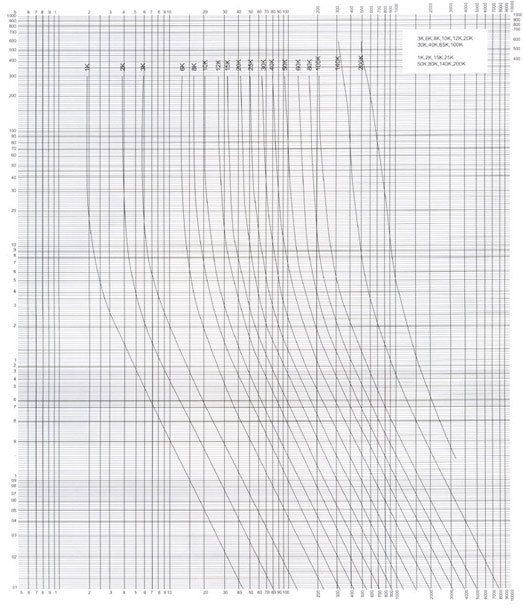

FUSE LINK Cure Diagram :
