Product Detail:
Product Introduction :
The product is used in indoor system of 50HZ and rated voltage of 10-15.5KV.It cannot be used independently,instead it must be connected in series together with oil-immersed transformer protection backup fuse to offe an overall protection against indoor electric system.the products are tested by national high-voltage electric fac-ilities Quality Suppervising and Testing center,and they are in accordance with GB15166.2and 1EC282-2.

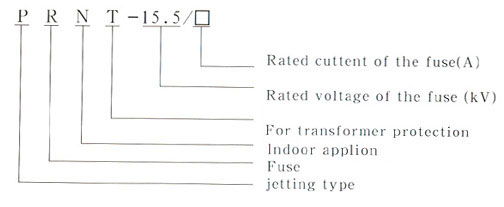

Type :
Basic parameters :
Type | Rated voltage KV | High-voltage | Rated current A | Rated Max break curren | Use environment |
PRNT-15.5 | 15.5kV | 17.2kV | 6,10,15,25,50,65,100,140 | 2.5KA | In transformer oll |
