Intro: The"GW9-10G"type of outdoor high voltage isolator switch is the high voltage switch equipment of single phase AC 50Hz.The product is suitable for power system with rated voltage 10KV to make or break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.


Detail

Messages

Product Detail:

Application:

The"GW9-10G"type of outdoor high voltage isolator switch is the high voltage switch equipment of single phase AC 50Hz.The product is suitable for power system with rated voltage 10KV to make or break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.

Notmal service conditions :

The altitude does not exceed 1000m.

The ambient air temperature:Maximum+40℃;Minimum:General Area-30℃,Paramos-40℃

The wind pressure does not exceed 700Pa.(Corresponding to 34m/s wind speed)℃

The earhtquake intensity does not excees & degrees.

The working situation without frequent viloent vibration.

The installation site of ordinary type isolatir shoukd be kept away from gas,smoke chemical deposition,salt-sprayfog,dudt and othe expiosive and corrosive maters that affect seriously insulation and conuction capability of the isolator.

   Pollution-proof type isolator is apploes to severe filthy conduction area,however,It shouldn't be any explosive matters and matters causing fire .

Thw isolator can be installed verically or aslant.Pleade figture for overall and installation dimension :

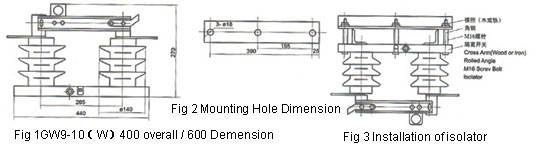

Overall and installation dimension

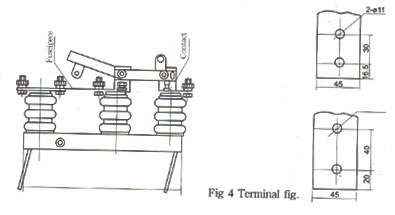

Please see fig.for Overall dimension of type GWR1-0.5-600 low voltage fusr type fuse type isolator oudoor.


0.5A-1600A:

Fuse Rated current120A150A220A300A360A470600A
Fuse specification0.150.200.300.500.600.800.90
Transfoumer volume(KVA)80100150180-200250315-320400
