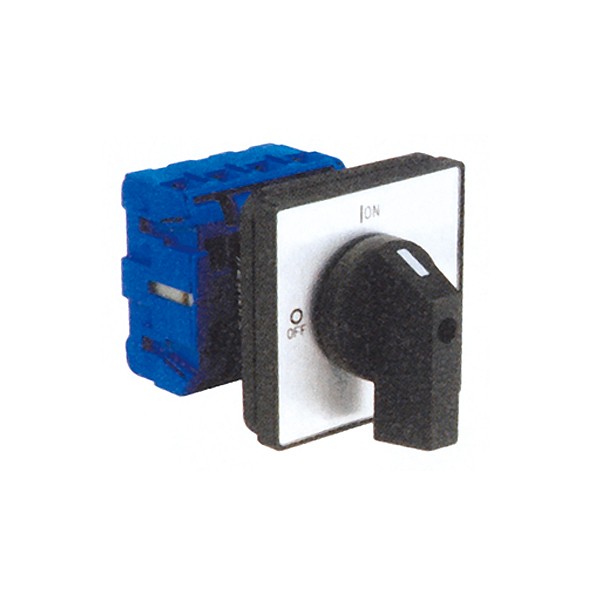

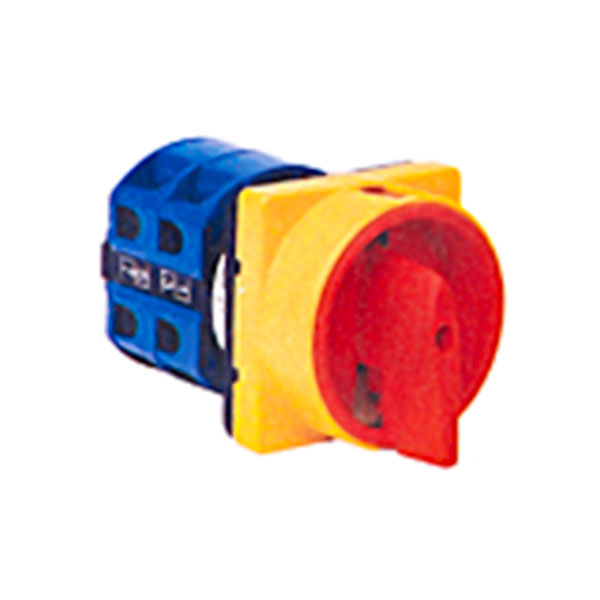

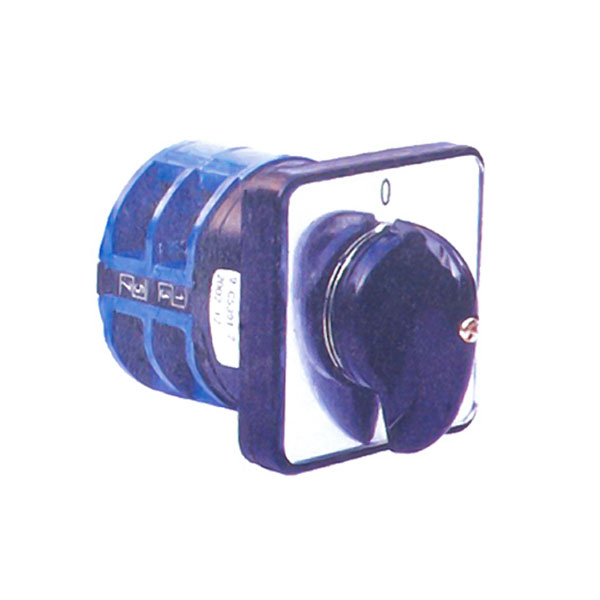

LW26 Series Rotary Switches
Product Detail:
1.Working Conditions
Ambient temperature Do Not exceed 40˚C and the average temperature, measured over a
period of 24 hours, Do Not exceed 35˚C.
Ambient temperature should not be below -5˚C.
Should not be installed over 2000m above sea level.
The humidity should not exceed 50% when the ambient temperature is 40˚C and higher
humidity is allowed for lower temperature.
2.Installation Conditions
A clean environment is required.
Please follow our manual.
3.Dimensions
Dimensions and installation
Square escutcheon plate and rectangular escutcheon plate
| Description | Escutcheon plate | Dimension(mm) | Installation(mm) | ||||||
| A | B | C | L | E | F | D1 | D2 | ||
| LW26-10 | M0 square | 30 | 30 | 28 | 22+8n | 20 | ø8 | ø3.2 | |
| LW26X-10 | M0 square | 30 | 30 | 28 | 26.5+12n | 20 | ø8 | ø3.2 | |
| LW26-20 | M1 square | 48 | 48 | 43 | 22+9.6n | 36 | 36 | ø8.5 | ø4.5 |
| M1 rectangular | 48 | 60 | 43 | 22+9.6n | 36 | 36 | ø8.5 | ø4.5 | |
| M2 square | 64 | 64 | 43 | 25+9.6n | 48 | 48 | ø10 | ø4.5 | |
| M2 rectangular | 64 | 80 | 43 | 25+9.6n | 48 | 48 | ø10 | ø4.5 | |
| LW26X-20 | M1 square | 48 | 48 | 46 | 22+14n | 36 | 36 | ø8.5 | ø4.5 |
| M1 rectangular | 48 | 60 | 46 | 22+14n | 36 | 36 | ø8.5 | ø4.5 | |
| M2 square | 64 | 64 | 46 | 25+14n | 48 | 48 | ø10 | ø4.5 | |
| M2 rectangular | 64 | 80 | 46 | 25+14n | 48 | 48 | ø10 | ø4.5 | |
| LW26-25 | M1 square | 48 | 48 | 45.2 | 23+12.8n | 36 | 36 | ø8.5 | ø4.5 |
| M1 rectangular | 48 | 60 | 45.2 | 23+12.8n | 36 | 36 | ø8.5 | ø4.5 | |
| M2 square | 64 | 64 | 45.2 | 26.5+12.8n | 48 | 48 | ø10 | ø4.5 | |
| M2 rectangular | 64 | 80 | 45.2 | 26.5+12.8n | 48 | 48 | ø10 | ø4.5 | |
| LW26-32 | M2 square | 64 | 64 | 58 | 29.2+12.8n | 48 | 48 | ø10 | ø4.5 |
| M2 rectangular | 64 | 80 | 58 | 29.2+12.8n | 48 | 48 | ø10 | ø4.5 | |
| LW26-32F | M1 square | 48 | 48 | 48 | 23+14n | 36 | 36 | ø8.5 | ø4.5 |
| M1 rectangular | 48 | 60 | 48 | 23+14n | 36 | 36 | ø8.5 | ø4.5 | |
| M2 square | 64 | 64 | 48 | 24.5+14n | 48 | 48 | ø10 | ø4.5 | |
| M2 rectangular | 64 | 80 | 48 | 24.5+14n | 48 | 48 | ø10 | ø4.5 | |
| LW26-63 | M2 square | 64 | 64 | 66 | 29.2+21.5n | 48 | 48 | ø10 | ø4.5 |
| M2 rectangular | 64 | 80 | 66 | 29.2+21.5n | 48 | 48 | ø10 | ø4.5 | |
| M3 square | 88 | 88 | 66 | 29.2+21.5n | 68 | 68 | ø13 | ø4.5 | |
| M3 rectangular | 88 | 107 | 66 | 29.2+21.5n | 68 | 68 | ø13 | ø4.5 | |
| LW26-125 | M3 square | 88 | 88 | 84 | 35+26.5n | 68 | 68 | ø13 | ø6 |
| M3 rectangular | 88 | 107 | 84 | 35+26.5n | 68 | 68 | ø13 | ø6 | |
| LW26-160 | M3 square | 88 | 88 | 88 | 35+26.5n | 68 | 68 | ø13 | ø6 |
| M3 rectangular | 88 | 107 | 88 | 35+26.5n | 68 | 68 | ø13 | ø6 | |
