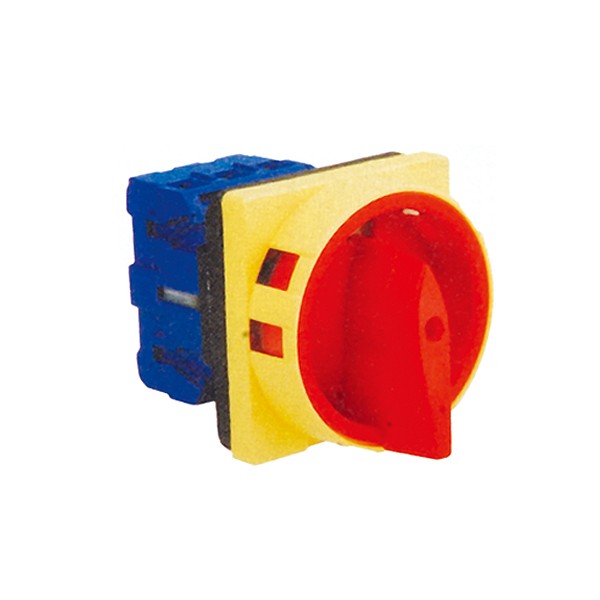

Product Detail:

1.Working Conditions

Ambient temperature Do Not exceed 40˚C and the average temperature, measured over a

period of 24 hours, Do Not exceed 35˚C.

Ambient temperature should not be below -5˚C.

Should not be installed above 2000m above sea level.

The humidity should not exceed 50% when the ambient temperature is 40˚C and higher

humandity is allowed for lower temperature.

Current type: 50Hz AC

Number of main contact: ON and OFF

Frequency: 8 hours per day, 30 times per hour

Mechanism Life: 10000 times/AC-23, 6000 times/AC-3, 2000 times for additional contact.

2.Accessorial Code

Number of poles: 3P, 4P

Additional contacts: 0 for additional contacts not inclosed, 1 for with additional contacts

Neutral terminal: 0 for neutral terminal not inclosed, 1 for with earthing terminal.

Installation:

Pad-lock escutcheon plate

Escutcheon plate

Single lock parallel installation

Doorlock safety switch with padlock system

Single hole installation

Type of box: 0 without protective box, 1 with IP65 plastic box

3.Accessorial Code

A clean environment is required.
