SVC2 Automatic Voltage Stabilizer
  • SVC2 Automatic Voltage Stabilizer
  • SVC2 Automatic Voltage Stabilizer

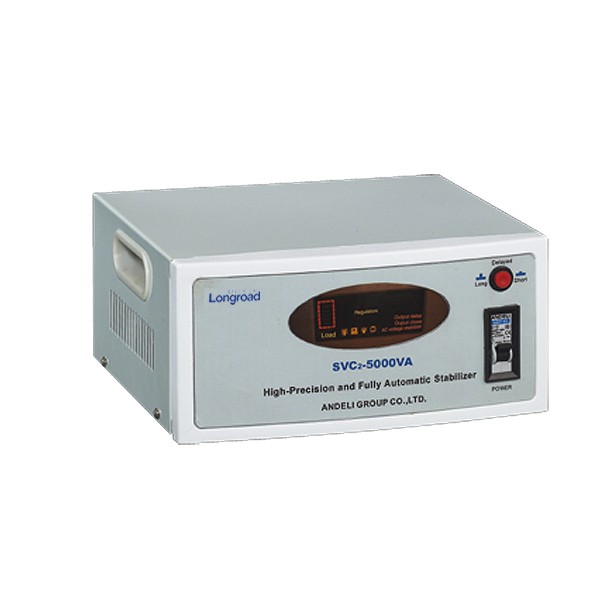

SVC2 Automatic Voltage Stabilizer

Category：- Voltage Stabilizer

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: SVC2 automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,such as small waveform distortion,high efficiency,high power factor,free from the effect or frequency variation of supply.It can be widely used in most situations where the voltage stabilization is required.


Detail

Messages

Product Detail:

1. Appliance
SVC2 automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,such as small waveform distortion,high efficiency,high power factor,free from the effect or frequency variation of supply.It can be widely used in most situations where the voltage stabilization is required.
2.Specification

Input voltage150V-250V
Output voltage220V±3%,110V±3%
Frequency50HZ/60HZ
Response time<1sec.(against 10% input voltage deviation)
Efficiency>90%
Ambient temperature-10oC~±40oC
Relative humidity<90%
Waveform distortionNon-lack fidelity waveform
Power factor cosΦ0.8
Insulation resistance>5MΩ

3.Specification

TypeOutline(cm)
LWH
SVC2-500VA22022065
SVC2-1000VA24024087
SVC2-1500VA24024087
SVC2-2000VA275250125
SVC2-3000VA275250125
SVC2-5000VA340350160
SVC2-7000VA340350160
