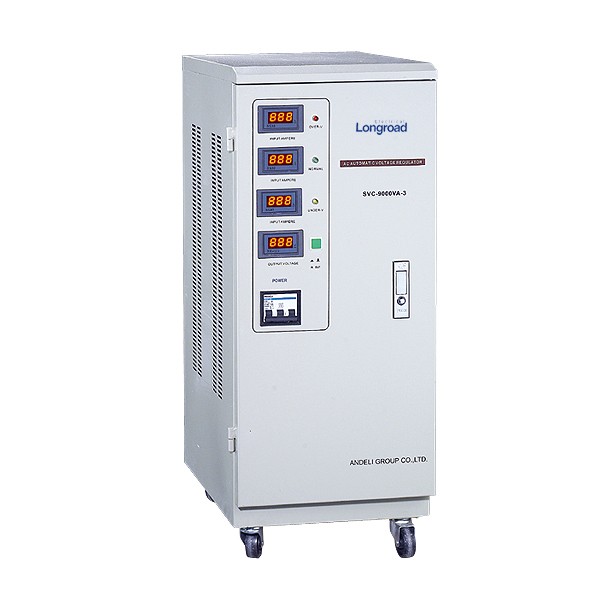

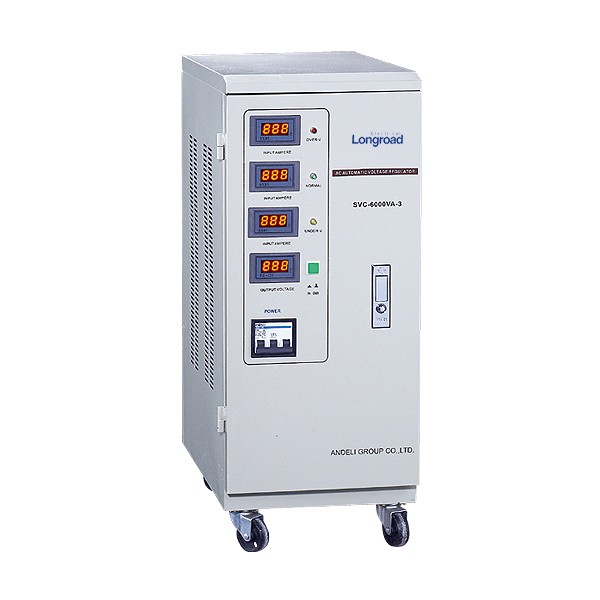

SVC(LED)(Three) Automatic Voltage Stabilizer

Category:- Voltage Stabilizer

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: SVC(LED)(Three) automatic regulator voltage consists of contact voltage regulator,sampling control circuit and servomotor as well.It has excellent features,such as small waveform distortion,high efficiency,high power factor,free from the effect or frequency variation of supply. It can be widely used in most situations where the voltage stabilization is required.


Detail

Messages

Product Detail:

1.Application
SVC(LED)(Three) automatic regulator voltage consists of contact voltage regulator,sampling control circuit and servomotor as well.It has excellent features,such as small waveform distortion,high efficiency,high power factor,free from the effect or frequency variation of supply. It can be widely used in most situations where the voltage stabilization is required.
2. Specification

Input voltage280V-430V
Output voltage380V±3%
PhaseThree phase
Frequency50Hz/60Hz
Response1 sec. (against 10% input voltage deviation)
EfficiencyBetter than 90%
Ambient temperature-10oC~+40oC
Relative humidityLess than 90%
WaveformNon-lack fidelity waveform
Insulation resistance>5MΩ

3. Outline and packing

TypeOutline(cm)Weight(Kg)Qty/CTN
LWH
SVC-D1.5KVA-348.522.51716.51PCS
SVC-D3KVA-348.522.517241PCS
SVC-D4.5KVA-348.522.517251PCS
SVC-D6KVA-33931.57736.51PCS
SVC-D9KVA-343.5367749.61PCS
SVC-D15KVA-348367065.51PCS
SVC-D20KVA-351.540.585881PCS
SVC-D30KVA-359461091081PCS
SVC-D40KVA-364.552.51091901PCS
SVC-D50KVA-364.552.51092031PCS
SVC-D60KVA-364.552.51092101PCS
SVC-D75KVA-36756.51302401PCS
SVC-D100KVA-36756.51302601PCS
