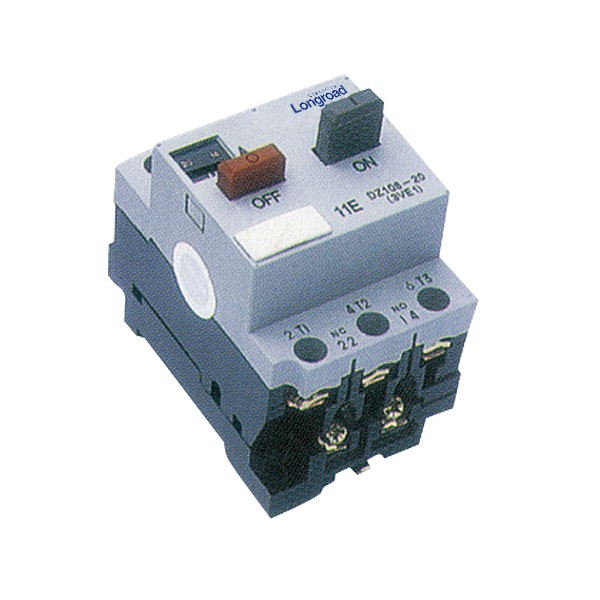

DZ108 Motor Protection Circuit Breaker

Category：- Motor Protection Circuit Breaker

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: DZ108 is suitable in AC circuit of 50Hz or 60Hz, voltage up to 660V and current up to 0.1-63A and used toprevent small capacity motor and circuit from overload and short circuit and also used as direct starter forstarting the motor and a switch for changeover the circuit under normal conditions.

Detail

Messages

Product Detail:

DZ108 is suitable in AC circuit of 50Hz or 60Hz, voltage up to 660V and current up to 0.1-63A and used toprevent small capacity motor and circuit from overload and short circuit and also used as direct starter forstarting the motor and a switch for changeover the circuit under normal conditions.

Specification

Type		DZ108-1	DZ108-3	DZ108-4
Poles		3	3	3
Rated current (A)		20	32	63
Rated voltage (V)		660	660	660
Rated insulation voltage (V)		660	750	750
Current setting voltage (V)		0.1~0.16 0.16~0.2 5 0.25~0.4 0.4~0.63 0.63~1 1~1.6 1.6~2.5 2~3.2 2.5~4 3.2~5 4~6.3 5~8 6.3~10 8~12.5 10~16 14~201~1.6 1.6~2.5 2.5~4 4~6.3 6.3~10 8~12.5 10~16 12.5~20 16~25 22~32 6.3~10 10~16 16~25 22~32 28~40 36~50 45~63 45~56
Power of controlled motor (KW)	220V	5.5	9	18
	380V	10	16	32
	660V	13	26	58
Mechanical life(1×104)		10	10	3
Protective feature	1.05le	Not act within 2hrs
	1.2le	Act within 2hrs
	12le	Action snap
