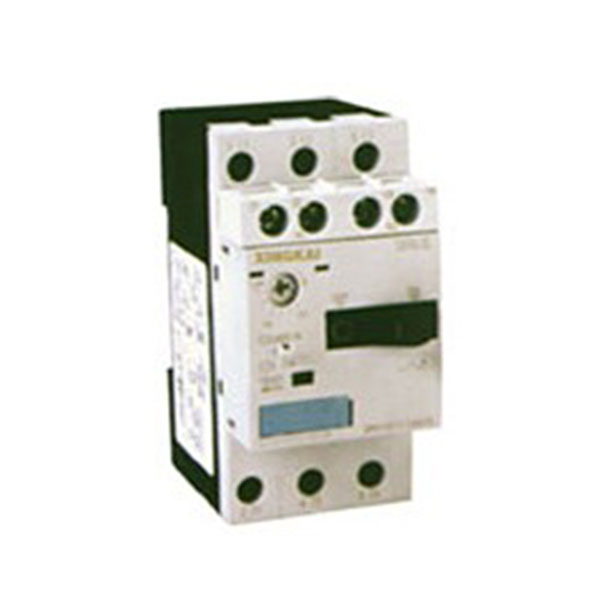

DZS8 Series Motor Protection Circuit Breaker

Category：- Motor Protection Circuit Breaker

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: The model No. and meaningMain technical parameters :standard Three-phase Motor 4Pole 400V ACThe commuting range of overload tripping deviceCircuit breaker Order NO.AC Contactor Order NO.SpecificationShort-circuit treaking capacity /q karated powerMotor Current0.060.20.14-0.2DZS81011-0BA10DZS910 …

Detail

Messages

Product Detail:

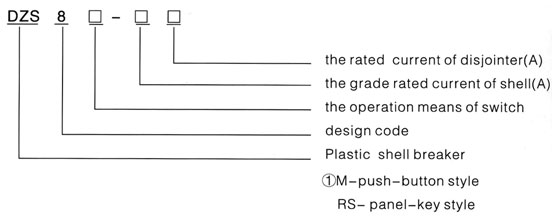

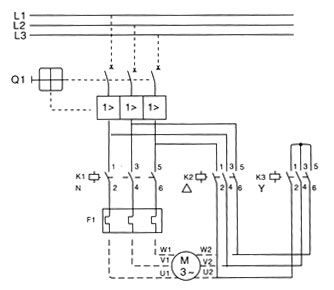

The model No. and meaning

Main technical parameters :

standard Three-phase Motor 4Pole 400V AC		The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power	Motor Current	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
0.06	0.2	0.14-0.2	DZS81011-0BA10	DZS91015-1AP01	SOO	50
0.06	0.2	0.18-0.25	DZS81011-0CA10	DZS91015-1AP01	SOO	50
0.09	0.3	0.22-0.32	DZS81011-0DA10	DZS91015-1AP01	SOO	50
0.09	0.3	0.28-0.1	DZS81011-0EA10	DZS91015-1AP01	SOO	50
0.12	0.4	0.35-0.5	DZS81011-0FA10	DZS91015-1AP01	SOO	50
0.18	0.6	0.45-0.63	DZS81011-0GA10	DZS91015-1AP01	SOO	50
0.25	0.85	0.55-0.8	DZS81011-0HA10	DZS91015-1AP01	SOO	50
0.25	0.85	0.7-1	DZS81011-0JA10	DZS91015-1AP01	SOO	50
0.37	1.1	0.9-1.25	DZS81011-0KA10	DZS91015-1AP01	SOO	50
0.55	1.5	1.1-1.6	DZS81011-1AA10	DZS91015-1AP01	SOO	50
0.75	1.9	1.4-2	DZS81011-1BA10	DZS91015-1AP01	SOO	50
0.75	1.9	1.8-2.5	DZS81011-1CA10	DZS91015-1AP01	SOO	50
1.1	2.7	2.2-3.2	DZS81011-1DA10	DZS91015-1AP01	SOO	50
1.5	3.6	2.8-4	DZS81011-1EA10	DZS91015-1AP01	SOO	50
1.5	3.6	3.5-5	DZS81011-1FA10	DZS91015-1AP01	SOO	50
2.2	5	4.5-6.3	DZS81011-1GA10	DZS91015-1AP01	SOO	50
3	6.5	5.5-8	DZS81011-1HA10	DZS91015-1AP01	SOO	50
4	8.5	7-10	DZS81011-1JA10	DZS91016-1AP01	SOO	50
5.5	11.5	9-12	DZS81011-1KA10	DZS91017-1AP01	SOO	50
7.5	15.5	11-16	DZS81011-4AA10	DZS91025-1AP01	SO	50
7.5	15.5	14-20	DZS81011-4BA10	DZS91025-1AP01	SO	50
11	22	17-22	DZS81011-4CA10	DZS91026-1AP01	SO	50
11	22	20-25	DZS81011-4DA10	DZS91027-1AP01	SO	50

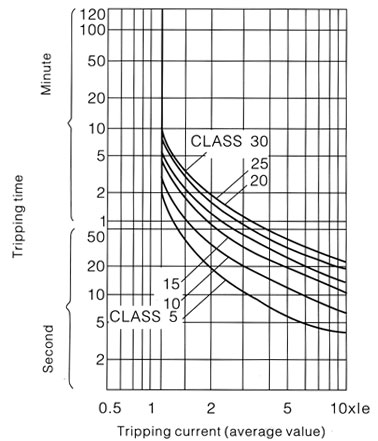

Tripping grade : 10 , matching style 2 : /q =50KA

standard Three-phase Motor 4Pole 400V AC		The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power p kw	I Motor Current A	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
0.06	0.2	0.14-0.2	DZS81011-0BA10	DZS91015-1AP01	SOO	50
0.06	0.2	0.18-0.25	DZS81011-0CA10	DZS91015-1AP01	SOO	50
0.09	0.3	0.22-0.32	DZS81011-0DA10	DZS91015-1AP01	SOO	50
0.09	0.3	0.28-0.1	DZS81011-0EA10	DZS91015-1AP01	SOO	50
0.12	0.4	0.35-0.5	DZS81011-0FA10	DZS91015-1AP01	SOO	50
0.18	0.6	0.45-0.63	DZS81011-0GA10	DZS91015-1AP01	SOO	50
0.25	0.85	0.55-0.8	DZS81011-0HA10	DZS91015-1AP01	SOO	50
0.25	0.85	0.7-1	DZS81011-0JA10	DZS91015-1AP01	SOO	50
0.37	1.1	0.9-1.25	DZS81011-0KA10	DZS91015-1AP01	SOO	50
0.55	1.5	1.1-1.6	DZS81011-1AA10	DZS91015-1AP01	SOO	50
0.75	1.9	1.4-2	DZS81011-1BA10	DZS91015-1AP01	SOO	50
0.75	1.9	1.8-2.5	DZS81011-1CA10	DZS91015-1AP01	SO	50
1.1	2.7	2.2-3.2	DZS81011-1DA10	DZS91015-1AP01	SO	50
1.5	3.6	2.8-4	DZS81011-1EA10	DZS91015-1AP01	SO	50
1.5	3.6	3.5-5	DZS81011-1FA10	DZS91015-1AP01	SO	50
2.2	5	4.5-6.3	DZS81011-1GA10	DZS91015-1AP01	SO	50
3	6.5	5.5-8	DZS81011-1HA10	DZS91015-1AP01	SO	50
4	8.5	7-10	DZS81011-1JA10	DZS91016-1AP01	SO	50
5.5	11.5	9-12	DZS81011-1KA10	DZS91017-1AP01	SO	50
7.5	15.5	11-16	DZS81011-4AA10	DZS91025-1AP01	SO	50
7.5	15.5	14-20	DZS81011-4BA10	DZS91025-1AP01	SO	50

Tripping grade : 10 , matching style 2 : /q =100KA

standard Three-phase Motor 4Pole 400V AC		The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power	Motor Current	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
0.04	0.16	0.11-0.16	DZS81011-0AA10	DZS91015-1AP01	SOO	130
0.06	0.2	0.14-0.2	DZS81011-0BA10	DZS91015-1AP01	SOO	130
0.06	0.2	0.18-0.25	DZS81011-0CA10	DZS91015-1AP01	SOO	130
0.09	0.3	0.22-0.32	DZS81011-0DA10	DZS91015-1AP01	SOO	130
0.09	0.3	0.28-0.4	DZS81011-0EA10	DZS91015-1AP01	SOO	130
0.12	0.4	0.35-0.5	DZS81011-0FA10	DZS91015-1AP01	SOO	130
0.18	0.6	0.45-0.63	DZS81011-0GA10	DZS91015-1AP01	SOO	130
0.18	0.6	0.55-0.8	DZS81011-0HA10	DZS91015-1AP01	SOO	130
0.25	0.85	0.7-1	DZS81011-0JA10	DZS91015-1AP01	SOO	130
0.37	1.1	0.9-1.25	DZS81011-0KA10	DZS91015-1AP01	SOO	130
0.55	1.5	1.1-1.6	DZS81011-1AA10	DZS91015-1AP01	SOO	130
0.75	1.9	1.4-2	DZS81011-1BA10	DZS91015-1AP01	SOO	130
0.04	0.16	0.11-0.16	DZS81021-0AA10	DZS91024-1AP00	SO	130
0.06	0.2	0.14-0.2	DZS81021-0BA10	DZS91024-1AP00	SO	130
0.06	0.2	0.18-0.25	DZS81021-0CA10	DZS91024-1AP00	SO	130
0.09	0.3	0.22-0.32	DZS81021-0DA10	DZS91024-1AP00	SO	130
0.09	0.3	0.28-0.4	DZS81021-0EA10	DZS91024-1AP00	SO	130
0.12	0.4	0.35-0.5	DZS81021-0FA10	DZS91024-1AP00	SO	130
0.18	0.6	0.45-0.63	DZS81021-0GA10	DZS91024-1AP00	SO	130
0.18	0.6	0.55-0.8	DZS81021-0HA10	DZS91024-1AP00	SO	130
0.25	0.85	0.7-1	DZS81021-0JA10	DZS91024-1AP00	SO	130
0.37	1.1	0.9-1.25	DZS81021-0KA10	DZS91024-1AP00	SO	130
0.55	1.5	1.1-1.6	DZS81021-1AA10	DZS91024-1AP00	SO	130
0.75	1.9	1.4-2	DZS81021-1BA10	DZS91024-1AP00	SO	130
0.75	1.9	1.8-2.5	DZS81021-1CA10	DZS91024-1AP00	SO	130
1.1	2.7	2.2-3.2	DZS81021-1DA10	DZS91024-1AP00	SO	130
1.5	3.6	2.8-4	DZS81021-1EA10	DZS91024-1AP00	SO	130
1.5	3.6	3.5-5	DZS81021-1FA10	DZS91024-1AP00	SO	130
2.2	5	4.5-6.3	DZS81021-1GA10	DZS91024-1AP00	SO	130
3	6.5	5.5-8	DZS81021-1HA10	DZS91024-1AP00	SO	130
4	8.5	7-10	DZS81021-1JA10	DZS91006-1AP00	SO	130
5.5	11.5	9-12	DZS81021-1KA10	DZS91006-1AP00	SO	130
7.5	15.5	11-16	DZS81021-4AA10	DZS91026-1AP00	SO	100
7.5	15.5	14-20	DZS81021-4BA10	DZS91026-1AP00	SO	100
